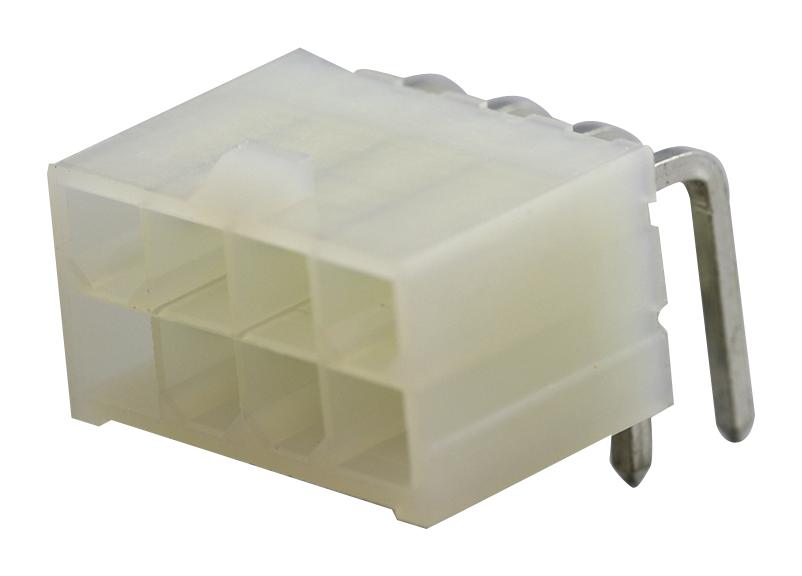

MOLEX 353180820 Power Connector
The Mini-Fit Jr. Power Connectors offer a 4.20mm pitch with a dual-row, right-angle header suitable for power applications. Made from PA Polyamide (Nylon) 6/6 with a 94V-2 flammability rating, these connectors support a maximum current of 13A per circuit when mated with suitable crimp terminals. They feature a natural color, have a durable design with up to 30 mating cycles, and are compliant with RoHS and UL certifications. Designed for PCB mounting, these connectors provide reliable electrical performance in industrial and power distribution applications.
MOLEX 353180820 Power Connector Specifications:
- Pitch: 4.20mm at mating interface
- Number of Rows: 2
- Circuits: 8 (maximum), 8 (loaded)
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Tin, 5.080µm
- Material - Plating Termination: Tin, 5.080µm
- Flammability: UL 94V-2
- Durability (mating cycles max): 30
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 250V
- Operating Temperature Range: -40°C to +105°C
- PCB Tail Length: 4.00mm
- PC Tail Interface: Through Hole
- Certification: RoHS, UL
- Weight: 2.826g per connector
- Surface Mount Compatibility: No
- Shielding: None
- Guide to Mating Part: 172708 Mini-Fit Jr. Receptacle Housing
Buy the Molex 353180820 – Reliable Power Connectors for Industrial Applications
Enhance your power and data connectivity with Molex 353180820 high-quality Mini-Fit Jr. power connectors. Engineered for durability and consistent performance, these connectors support up to 13A per circuit and feature a 4.20mm pitch, dual-row configuration, and a robust nylon body. Suitable for industrial applications, they ensure secure connections with excellent electrical properties, RoHS compliance, and UL certification. Purchase online now to upgrade your power distribution systems with these reliable, easy-to-mount connectors designed for long-lasting industrial performance.
Buy Molex 353180820 power connectors now and experience unmatched reliability and performance in power distribution and industrial systems.
Frequently Asked Questions
Where can I buy MOLEX 353180820?
You can click on the BUY or RFQ button to purchase 353180820 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 353180820?
You can download the 353180820 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 353180820?
MOLEX
