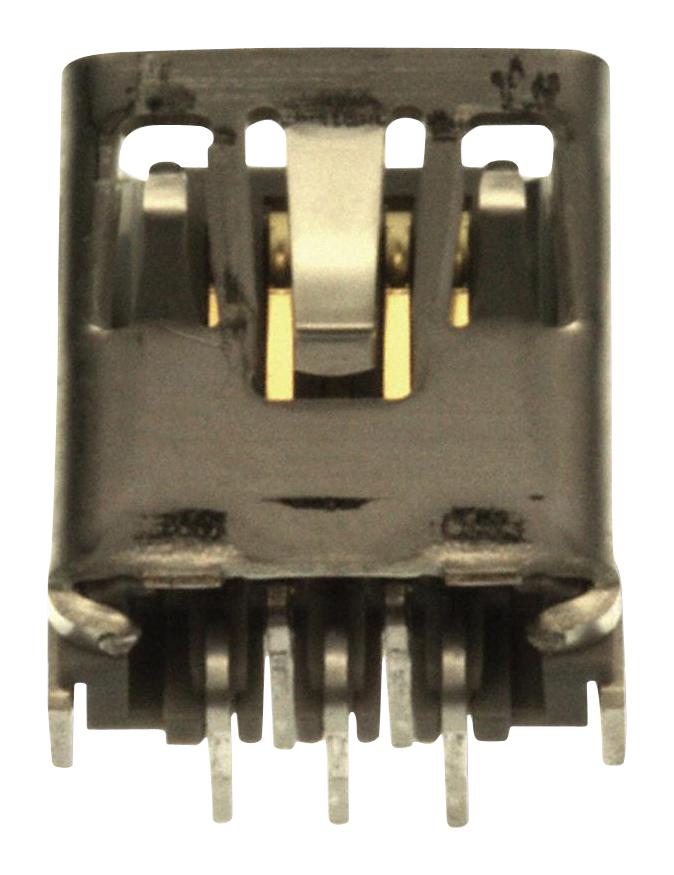

MOLEX 565790519 Mini USB Receptacle
This Mini USB AB-Receptacle features right-angle through-hole solder tails and shell tabs, designed for USB 2.0 applications and USB OTG (On-The-Go). Made from high-temperature thermoplastic with gold-plated high-performance alloy (HPA) contacts, it is RoHS compliant and suitable for high-reliability connections. The receptacle supports a maximum current of 1A, operates within -20°C to +85°C, and offers shielding for enhanced signal integrity. Its compact 1.80mm pitch and durable construction make it ideal for portable devices, embedded systems, and industrial applications requiring secure, versatile USB connections.
MOLEX 565790519 Mini USB Receptacle Specifications:
- Product Family: USB Receptacle
- Application: USB 2.0, USB OTG
- Component Type: Mini AB Receptacle
- Material - Metal: High Performance Alloy (HPA), Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Dimensions: Pitch - 1.80mm, PC Tail Length - 1.80mm
- Voltage - Maximum: 30V AC (RMS)/DC
- Current - Maximum per Contact: 1A
- Temperature Range - Operating: -20°C to +85°C
- Orientation: Right Angle
- Shield Type: Full Shield
- Waterproof / Dustproof: No
- Surface Mount Compatible: No
Buy the Molex Series 56579 USB Receptacle: 0565790519
Purchase the Molex Mini USB Receptacle online today to ensure secure, high-quality USB connections for your devices. This right-angle through-hole connector supports USB 2.0 and OTG applications, featuring gold-plated contacts for corrosion resistance and signal integrity. Its compact 1.80mm pitch and thermoplastic body provide durability and ease of assembly. Ideal for portable electronics, industrial systems, and embedded projects, this RoHS-compliant part delivers reliable performance in a wide temperature range, making it an essential component for professional and hobbyist applications requiring robust USB connectors.
Buy Molex 0565790519 now and experience reliable USB connectivity with durable design and high-performance features.
