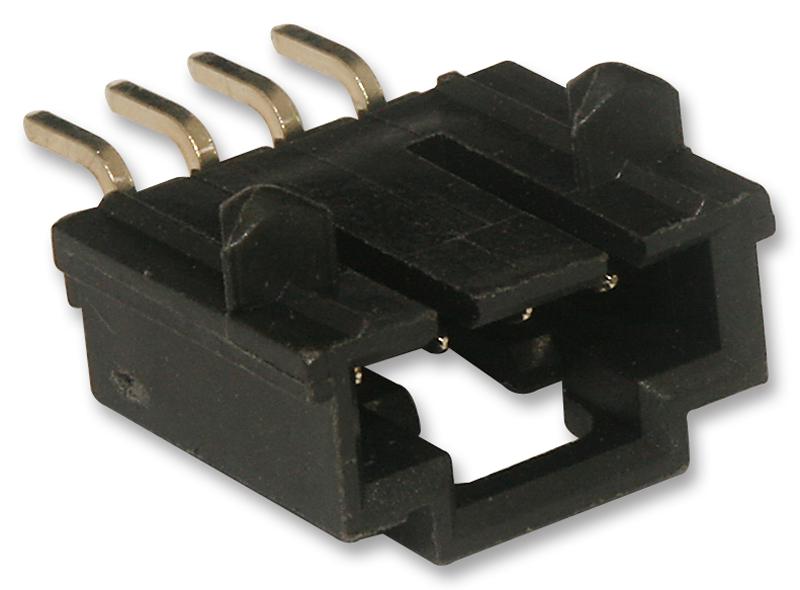

MOLEX 706340038 Wire-to-Board Connector
The 2.54mm Pitch SL Modular Connectors are surface-mount, low-profile, single-row wire-to-board headers designed for reliable electrical connections. Featuring a shrouded design with press-fit plastic peg, these connectors support up to 4 circuits with gold-plated contacts for enhanced durability. Suitable for a wide temperature range from -40°C to +105°C, they comply with RoHS and UL standards, ensuring safety and environmental compliance. These high-mating cycle connectors are ideal for compact electronic assemblies requiring robust, space-efficient connections.
MOLEX 706340038 Wire-to-Board Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 4
- Maximum Circuits: 4
- Material - Metal: Brass, Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Tin
- Resin: High Temperature Thermoplastic
- Color - Resin: Black
- Temperature Range - Operating: -40°C to +105°C
- Connected Mating Interface: Surface Mount
- Lock to Mating Part: Yes
- Shrouded: Yes
- Stackable: No
- Electrical Current: 3A per contact
- Voltage Max: 250V
- Durability (Mating Cycles): 50
- Flammability: UL 94V-0
- RoHS Compliance: Yes
- UL CSA Certified: Yes
Buy the Molex 15-91-2045 – Reliable Wire-to-Board Connectors for Industrial Applications
Discover the high-quality Molex wire-to-board connector featuring a 2.54mm pitch, single-row, surface-mount design, and gold-plated contacts for enhanced conductivity. This shrouded connector supports up to 4 circuits, offering excellent connector protection and precision for space-constrained electronic assemblies. Its robust construction ensures reliable electrical connections over numerous mating cycles, even in harsh environments. Whether designing industrial, consumer, or automation equipment, this high-performance connector meets strict UL and RoHS standards, making it an ideal choice for your manufacturing needs.
Buy Molex 15-91-2045 now and experience unmatched reliability and performance with high mating cycles and robust environmental standards.
Frequently Asked Questions
Where can I buy MOLEX 706340038?
You can click on the BUY or RFQ button to purchase 706340038 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 706340038?
You can download the 706340038 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 706340038?
MOLEX
