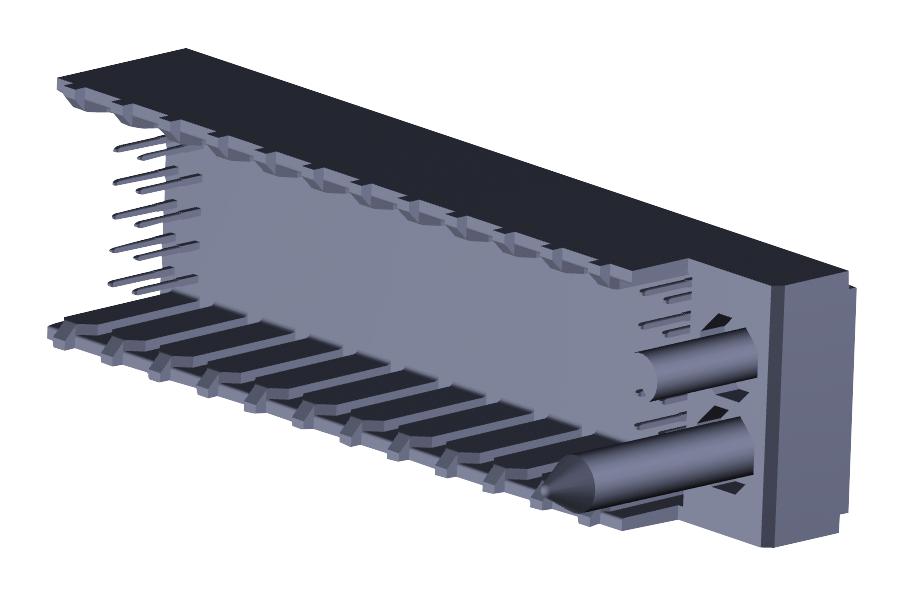

MOLEX 736440205 HDM Backplane Connector
The MOLEX 73644-0205 is a high-density backplane connector within the HDM series, engineered for robust board-to-board connections. It boasts 72 circuits, a vertical design, and press-fit termination for secure PCB mounting. The connector's polarizing key and guide post ensure correct alignment, while its gold-plated contacts provide excellent signal integrity and durability. Common applications include industrial control systems, data communication equipment, and other demanding environments requiring reliable high-speed data transfer.
MOLEX 736440205 HDM Backplane Connector Specifications:
- circuits_loaded: 72
- circuits_maximum: 72
- color_resin: Black, Natural
- durability_mating_cycles: 250
- first_mate_last_break: No
- flammability: 94V-0
- guide_to_mating_part: Yes
- keying_to_mating_part: Yes
- material_metal: Phosphor Bronze, Stainless Steel
- plating_mating: Gold (0.762µm)
- plating_termination: Gold (0.051µm)
- material_resin: High Temperature Thermoplastic
- number_of_columns: 12
- number_of_pairs_open_pin_field: 6
- number_of_rows: 6
- orientation: Vertical
- pc_tail_length: 3.50mm
- pcb_locator: No
- pcb_retention: Yes
- pcb_thickness_recommended: 2.50mm
- packaging_type: Tube
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- polarized_to_pcb: No
- stackable: Yes
- surface_mount_compatible: Yes
- temperature_range_operating: -55° to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 1.0A
- data_rate: 1.0 Gbps
- real_signals_per_25mm: 75
- shielded: No
- voltage_maximum: 250V AC
Buy the 73644-0205 MOLEX HDM Backplane Connector | myMectronic
Purchase the MOLEX 73644-0205 HDM Backplane Connector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 736440205?
You can click on the BUY or RFQ button to purchase 736440205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 736440205?
You can download the 736440205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 736440205?
MOLEX
