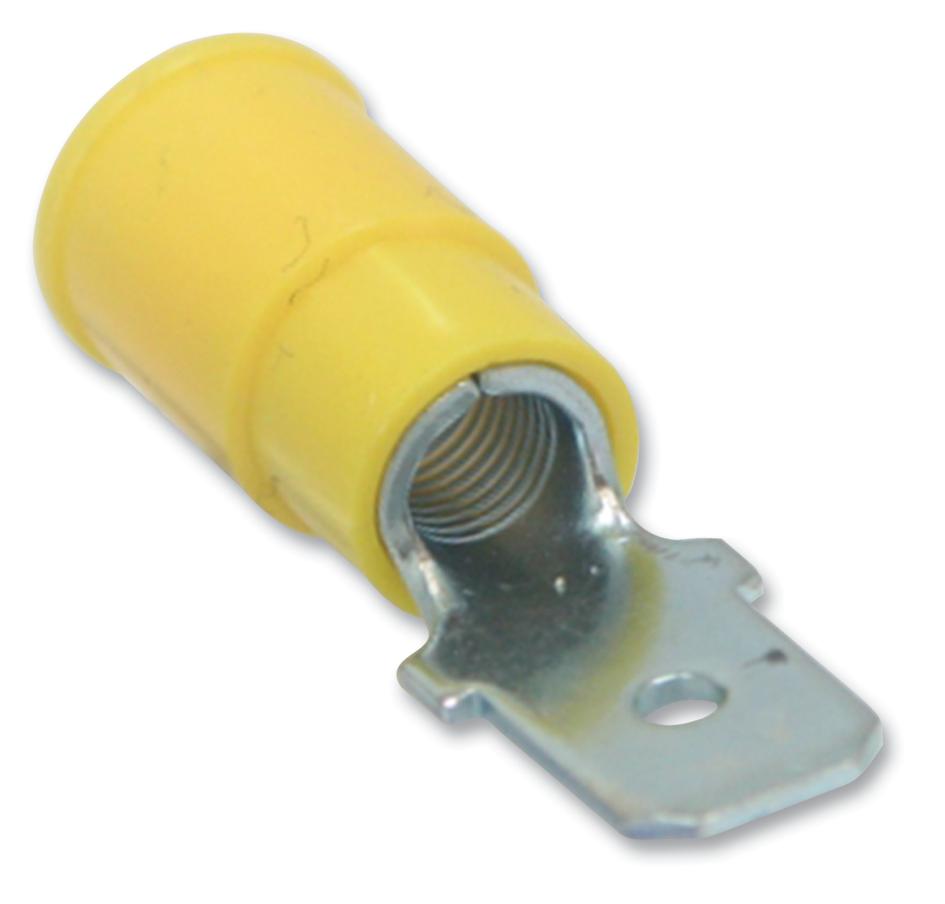

MOLEX 190230008 quick disconnect terminal
The InsulKrimp Quick-Disconnect Male terminal is designed for reliable electrical connections in industrial wiring systems. Made of brass with zinc chromate plating, it features a closed barrel type and yellow PVC insulation for durability. Suitable for 10-12 AWG wires with a maximum insulation diameter of 6.40mm, it supports up to 600V at operating temperatures ranging from -50°C to +105°C. Its funnel entry and crimp quality equipment ensure secure, high-quality connections, making it ideal for automation and control panel applications.
MOLEX 190230008 quick disconnect terminal Specifications:
- Material: Brass with Zinc Chromate plating
- Insulation: PVC, Yellow
- Color: Yellow
- Flammability: 94V-0
- Gender: Male
- Type: Quick Disconnect
- Barrel Type: Closed
- Tab Thickness: 0.81mm
- Tab Width: 6.35mm
- Wire Size: AWG 10, 12
- Wire Insulation Diameter: Up to 6.40mm
- Voltage Rating: 600V
- Temperature Range: -50°C to +105°C
- Crimp Quality: Yes
- Packaging: Bag
- Certifications: UL E79133, CSA LR18689
- Dimensions: typical tab width 6.35mm, thickness 0.81mm, barrel closed type
Buy the Molex 0190230008 – Reliable Quick-Disconnect for Industrial Applications
Secure your electrical connections efficiently with the Molex InsulKrimp quick-disconnect male terminal. Made from durable brass with zinc chromate plating, it ensures excellent conductivity and corrosion resistance. Designed for 10-12 AWG wires with a maximum insulation diameter of 6.40mm, it supports up to 600V voltage. Its closed barrel and crimp quality equipment deliver reliable, high-quality connections suitable for automation, control panels, and industrial wiring, ensuring safety and durability in demanding environments.
Buy Molex 0190230008 now and experience unmatched reliability and high-quality electrical connections in industrial systems.
Frequently Asked Questions
Where can I buy MOLEX 190230008?
You can click on the BUY or RFQ button to purchase 190230008 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190230008?
You can download the 190230008 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190230008?
MOLEX
