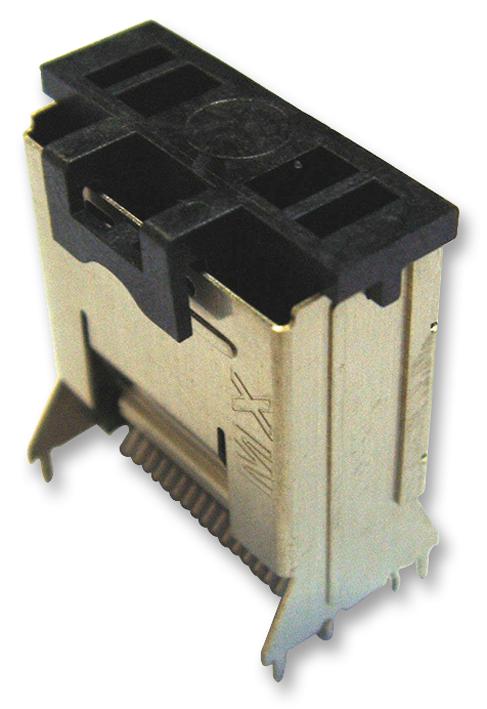

MOLEX 757840140 Surface Mount Receptacle Connector
The 0.80mm Pitch iPass Connector System is a surface mount receptacle designed for high-speed data and power connections. Featuring a vertical orientation, internal assembly with shell, and a 36 circuit configuration, it offers durable performance with up to 1,000 mating cycles. Constructed from high-performance copper-nickel-zinc alloy with gold plating, the connector supports a maximum current of 0.5A and voltage of 30V AC/DC. Suitable for PCI Express and wire-to-board applications, it operates efficiently within -40°C to +80°C temperature range, ensuring reliable connectivity in modern electronic systems.
MOLEX 757840140 Surface Mount Receptacle Connector Specifications:
- Pitch: 0.80mm
- Number of Circuits: 36
- Material - Metal: Copper-Nickel-Zinc High Performance Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 3.954 grams
- Durability (mating cycles max): 1000
- Temperature Range: -40°C to +80°C
- Voltage Max: 30V AC/DC
- Current Max per Contact: 0.5A
- Dimensions: Tail length 2.79mm, PCB thickness compatible
- Waterproof / Dustproof: No
- PC Tail Length: 2.79mm
- Orientation: Vertical
- Packaging: Embossed tape on reel
- Flammability: High rating, UL Listed, CSA Certified
- Environmental Compliance: RoHS, China RoHS, REACH SVHC not contained
- Process Capability: Reflow soldering at max 260°C, 30 seconds
- Solder Process Data: Reflow
Buy the Buy Molex iPass Connector System Part Number 757840140 Online
Purchase the Molex surface mount receptacle connector with 0.80mm pitch, 36 circuits, and durable gold plating. Designed for PCI Express and wire-to-board applications, it offers high reliability, robust performance, and excellent electrical characteristics. Easily integrate with your electronic systems, supporting up to 1,000 mating cycles, operating efficiently within -40°C to +80°C temperature range. Ideal for high-speed data transfer, power delivery, and demanding industrial or consumer electronic deployments. Shop now for fast online delivery and technical support.
Buy Molex 757840140 now and experience unmatched reliability and performance for high-speed electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 757840140?
You can click on the BUY or RFQ button to purchase 757840140 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 757840140?
You can download the 757840140 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 757840140?
MOLEX
