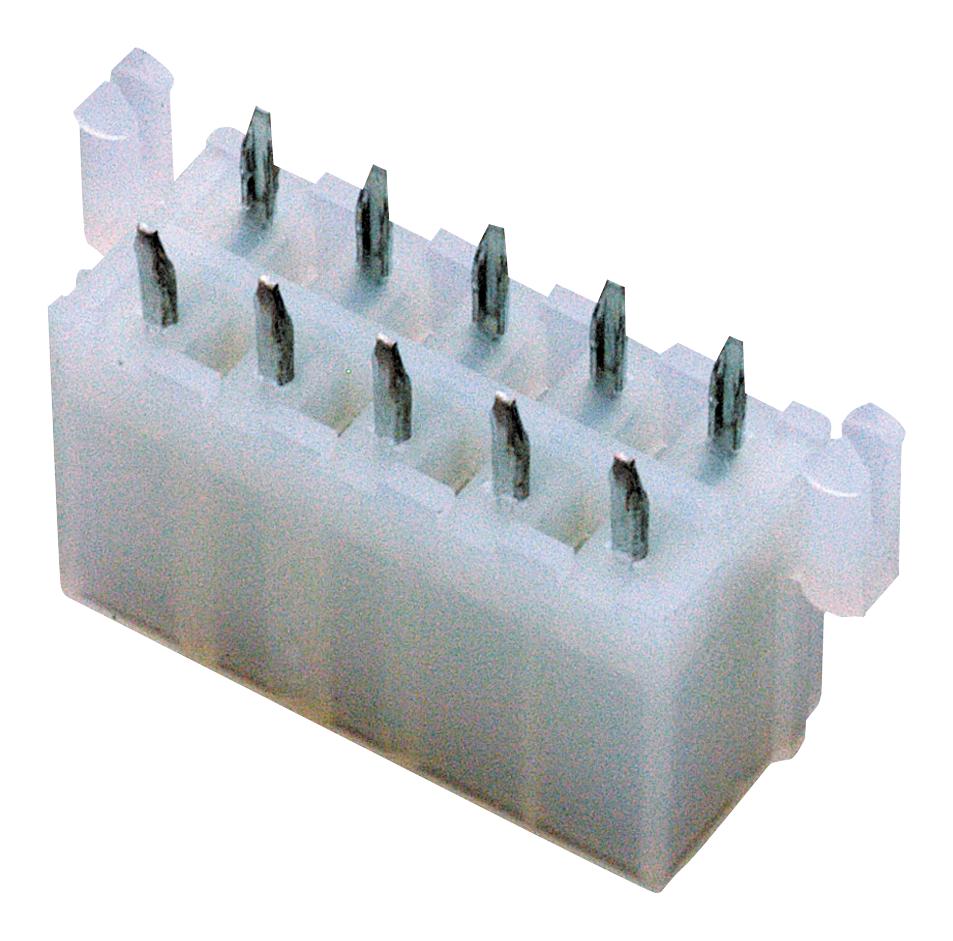

MOLEX 39299146 Power Connector
The Mini-Fit Jr. Vertical Header with a 4.20mm pitch offers a reliable, shrouded, dual-row power connection suitable for wire-to-board applications. Designed for durability, it supports up to 9.0A per contact at a maximum voltage of 600V and is compatible with standard Mini-Fit female terminals for easy assembly. With a operating temperature range of -40°C to +105°C, this connector is RoHS and Halogen-Free compliant, ideal for industrial, automotive, and consumer electronics requiring secure, high-current power connections. It features through-hole termination, polarisation for correct mating, and is offered in tray packaging for efficient handling.
MOLEX 39299146 Power Connector Specifications:
- Pitch: 4.20mm
- Number of circuits: 14
- Maximum current per contact: 9.0A
- Maximum voltage: 600V
- Operating temperature range: -40°C to +105°C
- Material - Metal: Tin-plated
- Material - Resin: Thermoplastic
- Plating min - Mating: 0.889um
- Plating min - Termination: 0.889um
- Termination interface: Through Hole
- Color - Resin: Natural
- PCB thickness - Recommended: 1.60mm
- Physical orientation: Vertical
- Packaging: Tray
- PCB locator: Yes
- Durability (mating cycles max): Not specified
- Flammability: UL 94V-0
- Agency certifications: CSA, UL
Buy the Molex 39299146 – Reliable Power Connectors for Industrial Applications
Enhance your electronic assemblies with the Molex Power Connector, offering a 4.20mm pitch and dual-row configuration. This shrouded connector supports up to 9A per contact at 600V, making it ideal for industrial, automotive, and consumer electronic applications requiring secure, high-current connections. Its through-hole termination ensures robust mounting, and its operating temperature range of -40°C to +105°C guarantees performance in demanding environments. RoHS compliant and designed for durability, this connector is available in tray packaging for efficient procurement and assembly.
Order your Molex Series39299146 vertical power connector today and equip your projects with dependable, high-current power solutions designed for harsh environments.
