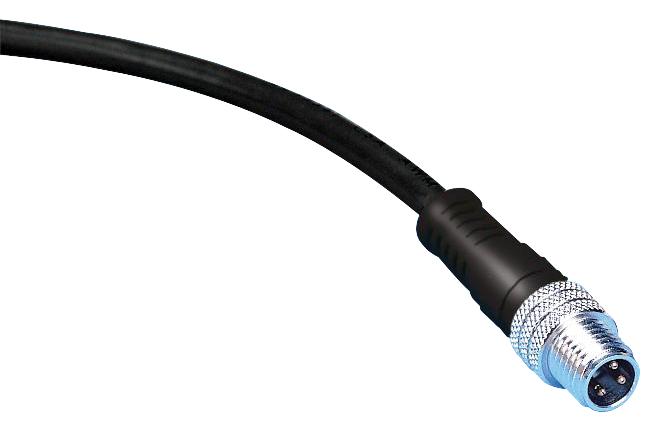

MOLEX 1200060667 Micro-Change M12 Cordset
This Micro-Change M12 single-ended cordset features 5 poles, male straight connector to pigtail, with 0.34mm² PVC cable, measuring 2.0 meters in length. Designed for industrial automation and sensor connections, it offers IP67 protection with corrosion-resistant nickel-plated brass contacts. Suitable for operating temperatures from -30°C to +80°C, this cordset supports up to 4.0A current and 250V AC/DC voltage. It complies with RoHS, Reach, and UL standards, ensuring reliable, safe connectivity in harsh environments.
MOLEX 1200060667 Micro-Change M12 Cordset Specifications:
- Connector: Micro-Change M12, 5 poles, Male (Straight) to Pigtail
- Cable Diameter: 5.80mm (.230")
- Cable Length: 2.0 meters (6.56')
- Material - Contact: Copper Alloy, Nickel-plated Brass
- Cable Jacket: PVC, Black, 0.34mm² wire cross-section, PUR inner cable
- Protection Rating: IP67
- Temperature Range: -30°C to +80°C
- Current Rating: 4.0A
- Voltage Rating: 250V AC/DC
- Gender: Male to Pigtail
- Coupling Style: Threaded
- RoHS, Reach, UL 2464 compliant
- Net Weight: Approximately 110.34 grams
Buy the Buy Molex Micro-Change M12 Part Number 1200060667 Online
Upgrade your industrial automation system with this high-quality Molex Micro-Change M12 cordset, featuring 5 poles, IP67 protection, and UL certification. This durable, 2-meter PVC cable assembly ensures reliable data and power transmission in harsh environments, supporting up to 4A and 250V. Designed for sensor connections and automation equipment, it offers excellent corrosion resistance with nickel-plated brass contacts and a threaded coupling for secure connections. Easy to install and compliant with RoHS and Reach standards, perfect for professional industrial use.
Buy Molex 1200060667 now and experience unmatched reliability and performance in industrial sensor and automation connections.
