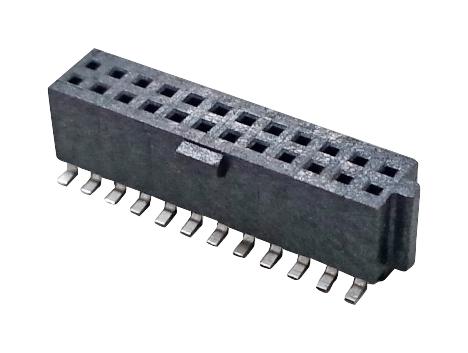

MOLEX 781201207 Board-to-Board Connectors
The Slim-Grid Receptacle is a surface-mount, vertical board-to-board connector designed for high reliability in industrial and electronic applications. It features 12 circuits with 0.05 mm gold plating, ensuring excellent electrical performance and corrosion resistance. Made from durable liquid crystal polymer and copper alloy, it supports operating temperatures from -55°C to +105°C. With a maximum current of 14A per contact and a voltage rating of 125V AC, it offers a robust connection solution. Its compact design includes a 1.27 mm pitch and 94V-0 flammability rating, suitable for demanding environments.
MOLEX 781201207 Board-to-Board Connectors Specifications:
- Circuits: 12
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Matte Tin
- Material - Resin: Liquid Crystal Polymer
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: None
- Packaging Type: Tube
- Pitch - Mating Interface: 1.27mm
- Temperature Range - Operating: -55°C to +105°C
- Current - Maximum per Contact: 14A
- Voltage - Maximum: 125V AC
- Flammability: 94V-0
- Glow-Wire Capable: No
- Lock to Mating Part: None
- Dimensions: Length 451mm
Buy the Molex 781201207 – Reliable Board-to-Board Connectors for Industrial Applications
Secure your electronic assemblies with the Molex Slim-Grid Receptacle. Featuring 12 circuits with gold-plated contacts, it provides excellent electrical performance, durability, and thermal stability. Its compact vertical design with a 1.27 mm pitch fits easily into tight spaces on printed circuit boards. Made from high-quality materials including copper alloy and liquid crystal polymer, it supports operating temperatures from -55°C to +105°C and carries up to 14A per contact. Ideal for industrial, automation, and advanced electronics. Purchase online now for fast delivery and reliable connections.
Buy Molex 781201207 now and experience unmatched reliability and performance with high-current, durable, surface-mount connectivity for industrial use.
