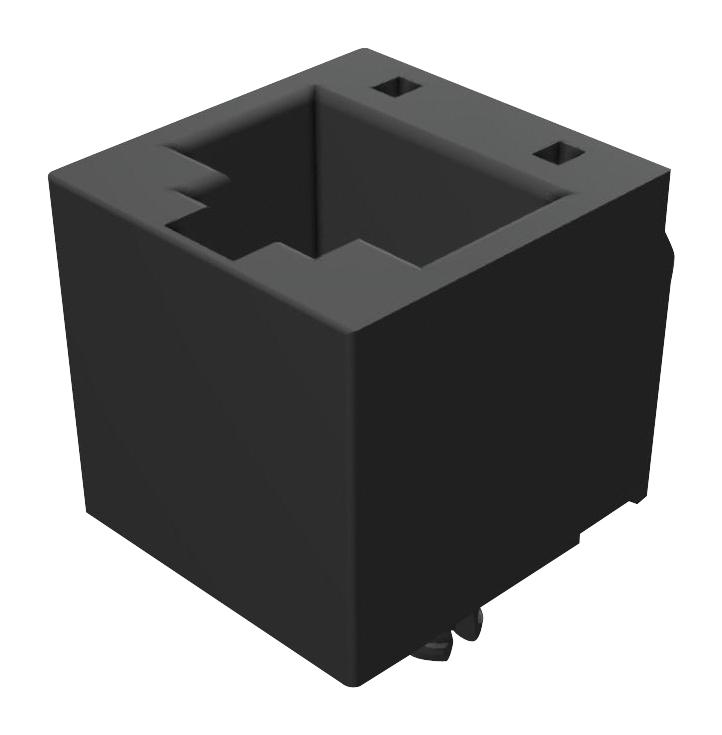

MOLEX 855065002 Ethernet Modular Jack
This modular jack is designed for high-performance Ethernet connections, supporting Power over Ethernet (PoE) with a vertical top entry design. Made from high-temperature thermoplastic with phosphor bronze contacts plated in gold over palladium nickel, it offers durability up to 2500 mating cycles. The connector supports 8/8 positions, is rated for 125V DC and 1.5A per contact, with a compact height of 16.30mm. Suitable for through-hole mounting with a PCB thickness recommendation of 1.02mm, it complies with RoHS and REACH standards, ensuring safety and environmental compliance.
MOLEX 855065002 Ethernet Modular Jack Specifications:
- Verical top entry design with through hole mounting
- Contact Material: Phosphor Bronze
- Contact Plating: Gold over Palladium Nickel
- Insulation Material: High Temperature Thermoplastic
- Flammability Rating: 94V-0
- Maximum Voltage: 125V DC
- Maximum Current per Contact: 1.5A
- Dimensions: Jack height 16.30mm, PCB thickness 1.02mm, pitch 1.27mm
- Durability: Up to 2500 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Port Configuration: 8/8 positions
- Waterproof/Dustproof: No
- RoHS, REACH, EU RoHS China RoHS compliant
- Packaging: Tray
Buy the Molex 0855065002 – Reliable Ethernet Modular Jack for Industrial Applications
Enhance your industrial networking setup with this reliable Ethernet modular jack. Designed for high durability and performance, it supports PoE, features 8/8 contacts, and offers RoHS compliance for environmentally conscious applications. Its high-quality materials, including gold-plated contacts and thermoplastic insulation, ensure long-lasting performance in demanding environments. Easy to install with through-hole mounting, the jack is suitable for a variety of industrial and networking applications, providing secure and stable connections for critical data transmission needs.
Get Molex 0855065002 today—built for precision, durability, and reliable network connections in industrial environments.
