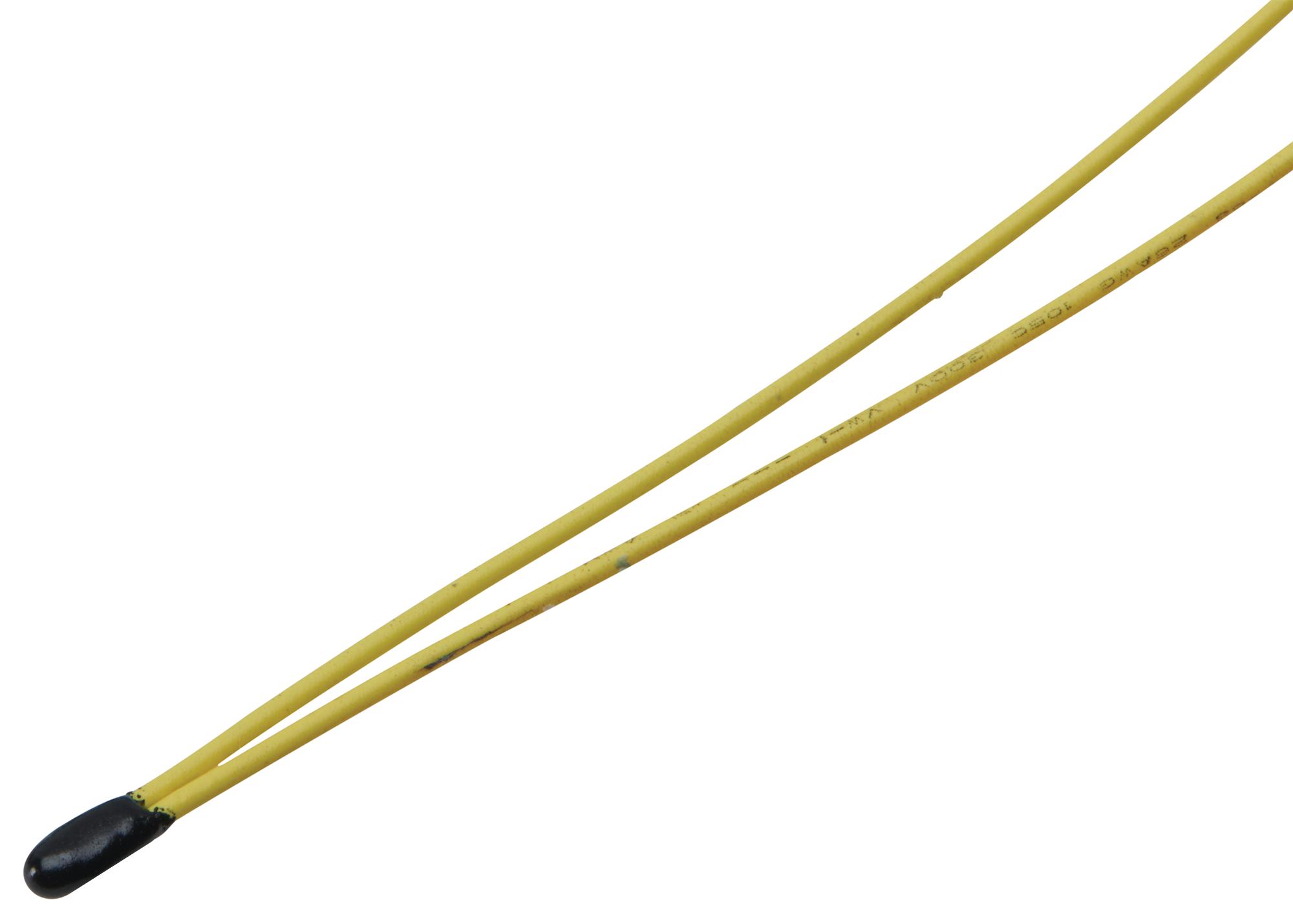

MOLEX 2152721603 NTC Temperature Sensor Cable
The MOLEX 215272-1603 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an NTC thermistor with an epoxy coating for environmental protection. It offers a 25.00mm length, a 3982 Beta Value, and a resistance of 10kΩ at 25°C with a tolerance of ±0.1°C. The cable is single-ended and utilizes AWG 28 wire. It is RoHS compliant and suitable for various industrial and commercial temperature sensing needs.
MOLEX 2152721603 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 25.00mm
- resistance_at_25c: 10kΩ
- resistance_tolerance: ±0.1°C (±0.44%)
- beta_value: 3982
- cable_length: 25.00mm
- circuits_loaded: 1
- color_resin: Yellow
- wire_size_awg: 28
- net_weight: 0.110/g
- upc: 193264875481
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc: lead
- halogen_free_status: Not Reviewed
Buy the 215272-1603 MOLEX NTC Temperature Sensor Cable | myMectronic
Purchase the MOLEX 215272-1603 NTC Temperature Sensor Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2152721603?
You can click on the BUY or RFQ button to purchase 2152721603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2152721603?
You can download the 2152721603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2152721603?
MOLEX
