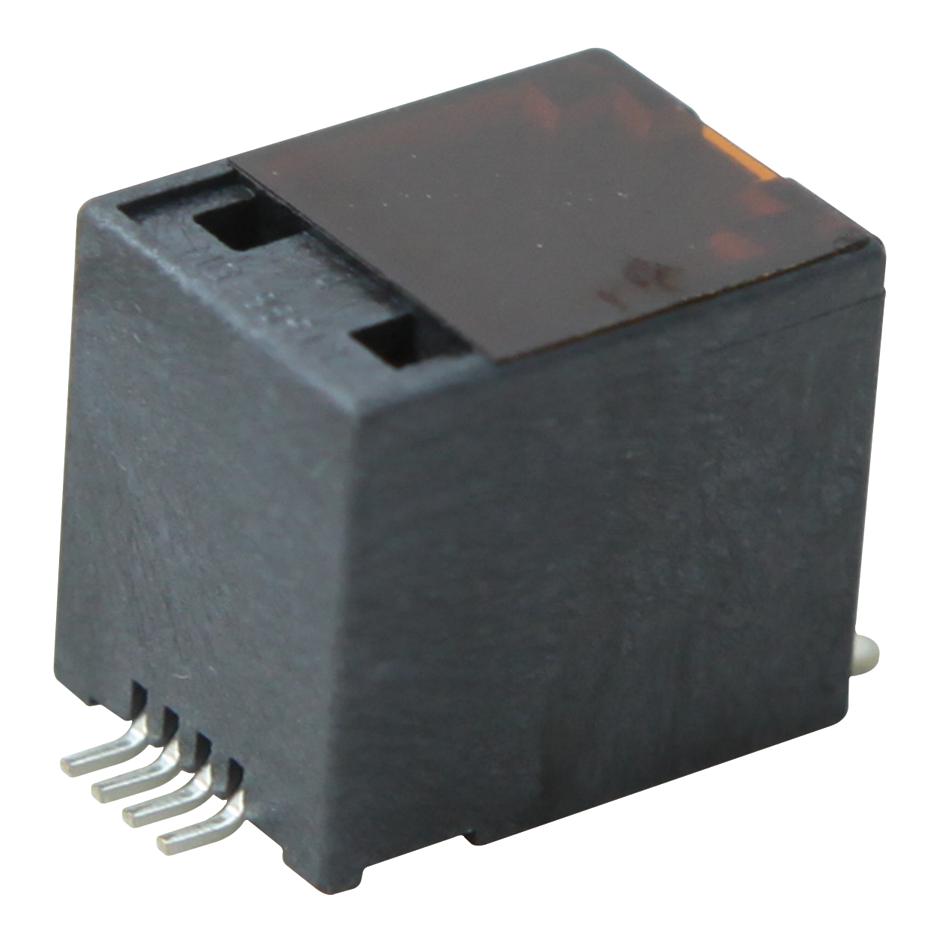

MOLEX 855135116 Modular Jack
This is a modular jack designed for surface mount, vertical top entry applications, compatible with 90075 modular plugs. It features a low-profile, pick-and-place design with a 4/4 contact arrangement, suitable for Power over Ethernet (PoE) systems. Constructed with high-temperature thermoplastic, copper alloy contacts, and gold over palladium nickel plating for reliable connections. The jack supports up to 2.500 mating cycles, operates within -40°C to +85°C, and ensures RoHS compliance. Its compact design makes it ideal for high-density PCB applications, providing durable and efficient network connectivity solutions.
MOLEX 855135116 Modular Jack Specifications:
- Component Type: Magnetic
- Package: Embossed Tape on Reel
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability: 2,500 mating cycles
- Jack Height: 12.70mm
- Temperature Range - Operating: -40°C to +85°C
- ROHS, China RoHS, REACH SVHC compliant
- Electrical: 1.5A maximum per contact, 125V DC maximum
- Ports: 1
- Positions / Loaded Contacts: 4/4
- Surface Mount Compatibility: Yes
- Waterproof / Dustproof: No
- Wire/Cable Type: N/A
- Termination Interface Style: N/A
- Plating Min - Mating: 1.016 μm
- Plating Min - Termination: 1.905 μm
Buy the Molex Series 85513 Modular Jack: 855135116
Purchase the Molex Series 85513 modular jack online today and equip your project with a durable, high-performance connector. This surface mount, low-profile jack supports 2,500 mating cycles and operates efficiently within a temperature range of -40°C to +85°C, making it ideal for Power over Ethernet systems. Crafted with high-quality materials including copper alloy contacts and gold over palladium nickel plating, it guarantees long-lasting, reliable connectivity. The easy pick-and-place design ensures quick assembly, saving time and reducing costs while delivering superior performance in demanding electronic applications.
Order your Molex Series 85513 modular jack today and ensure reliable network connections for your high-density PCB applications.
Frequently Asked Questions
Where can I buy MOLEX 855135116?
You can click on the BUY or RFQ button to purchase 855135116 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 855135116?
You can download the 855135116 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 855135116?
MOLEX
