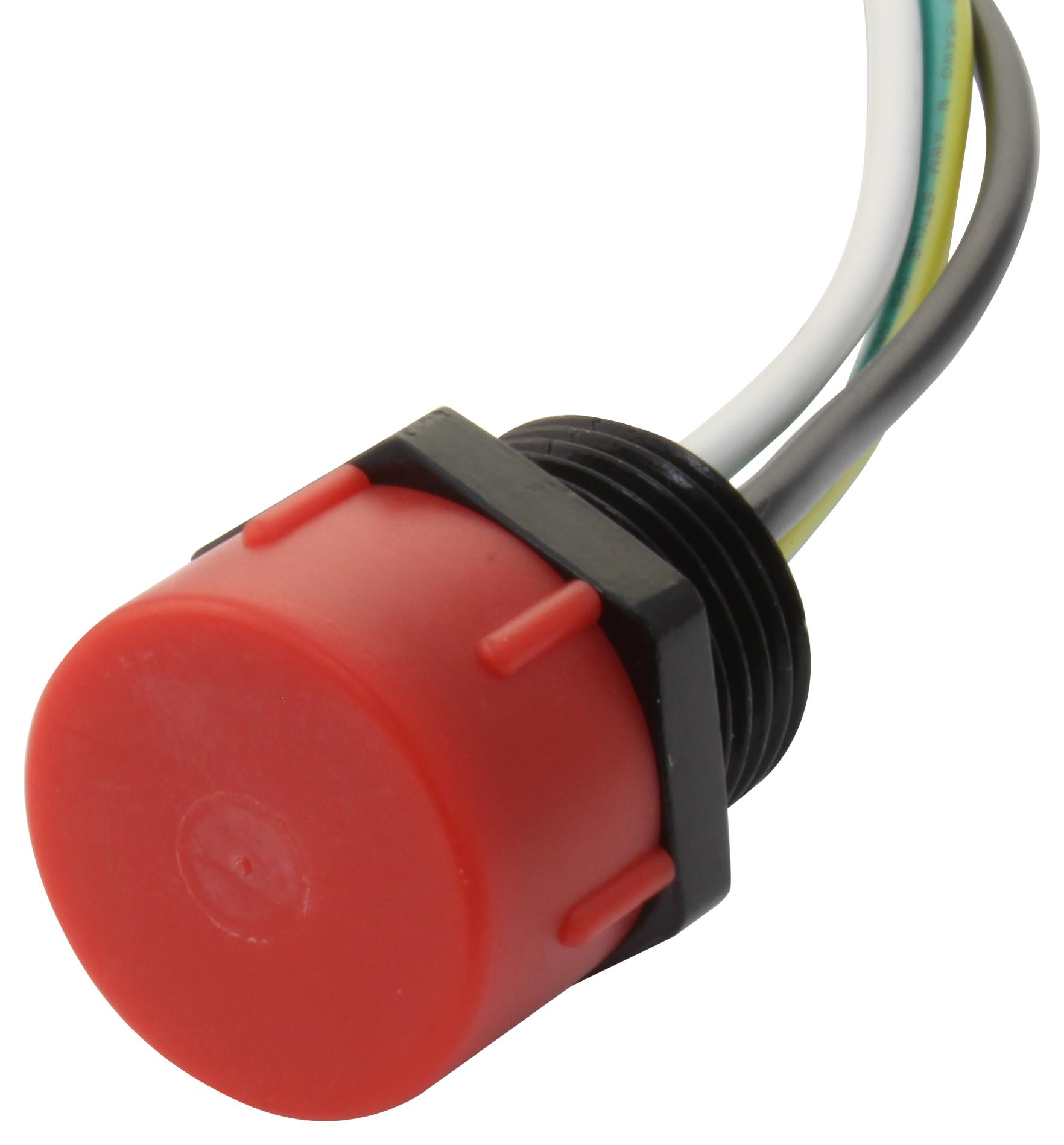

MOLEX 1300130223 Mini-Change Receptacle with Leads
The MOLEX 130013-0223 is a Mini-Change A-Size Receptacle designed for robust industrial connectivity. It features a 1/2"-14 NPT thread for secure mounting, a straight male connector, and a 1.0m lead wire. This connector is suitable for applications requiring a compact and durable solution with 3 poles, and is rated for a maximum current of 13.0A and a voltage of 600V AC/DC. Please refer to Molex's website for the most up-to-date specifications and certifications.
MOLEX 1300130223 Mini-Change Receptacle with Leads Specifications:
- Product Family: Industrial Receptacles
- Series: 130013
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Type: Single Ended (pigtail)
- Coupling Type: External Thread
- Gender: Male
- Keyway: Single
- Length: 1.0m
- Material - Component: Zinc Die-Cast with Black Epoxy
- Mounting Thread Size: 1/2" - 14 NPT
- Net Weight: 93.049/g
- Orientation: Straight
- Poles: 3
- Temperature Range - Operating: -20°C to +105°C
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V AC/DC
- Engineering Number: 1R3006A20M010
- UPC: 78678884142
