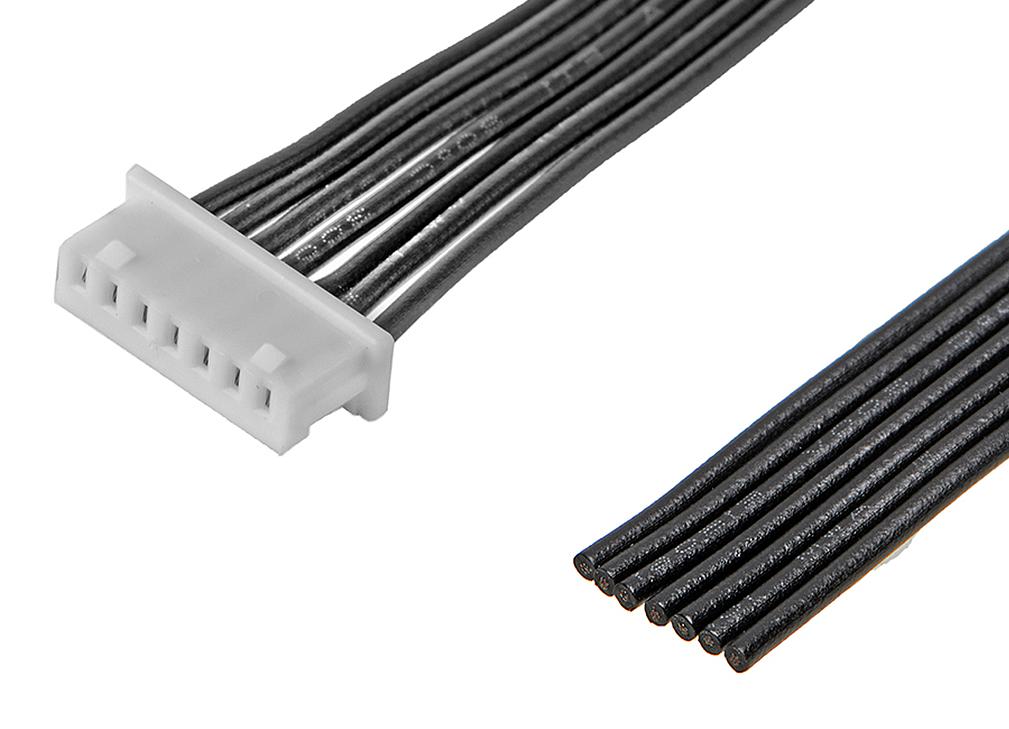

MOLEX 2181120701 PicoBlade Cable Assembly
This PicoBlade female-to-pigtail cable assembly features a 1.25mm pitch, single row design, and natural color. Made with UL1061 discrete wires and polyester resin, it supports 28 AWG wires with crimp or compression termination. Phosphor bronze contacts with tin plating ensure reliable electrical connection, suitable for signal applications and wire-to-board or wire-to-wire assemblies. Compact and easy to install, it is ideal for prototyping, testing, and efficient production of electronic devices, offering durability and secure connectivity in a small form factor.
MOLEX 2181120701 PicoBlade Cable Assembly Specifications:
- Cable Length: 150.00mm
- Circuits: 7
- Color: Natural
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Wire Insulation Diameter: 1.25mm
- Wire Size: 28 AWG
- Wire/Cable Type: Discrete Wire Assembly
- Termination Interface: Crimp or Compression
- Net Weight: 1.596 grams
- Number of Rows: 1
- Assembly Configuration: Connector to Connector, Overmolded
- Reference Drawing Number: 195842250741
- Compliance: RoHS, China RoHS, Halogen-Free, Not Low-Halogen
Buy the Buy Molex PicoBlade Cable Assembly Part Number 2181120701 Online
Order the Molex PicoBlade cable assembly with part number 2181120701 online today and enjoy high-quality, reliable connections for your electronic projects. Featuring a 1.25mm pitch and 28 AWG wires, this assembly is designed for signal application needs and easy to install with crimp or compression termination. Its durable phosphor bronze contacts and polyester resin material ensure longevity and performance. Perfect for wire-to-board and wire-to-wire connections, this compact assembly simplifies design, prototyping, and production, making it essential for engineers and technicians seeking dependable connectivity solutions.
Buy Molex 2181120701 now and experience reliable signal connections with a compact and easy-to-install cable assembly perfect for electronic prototyping and manufacturing.
