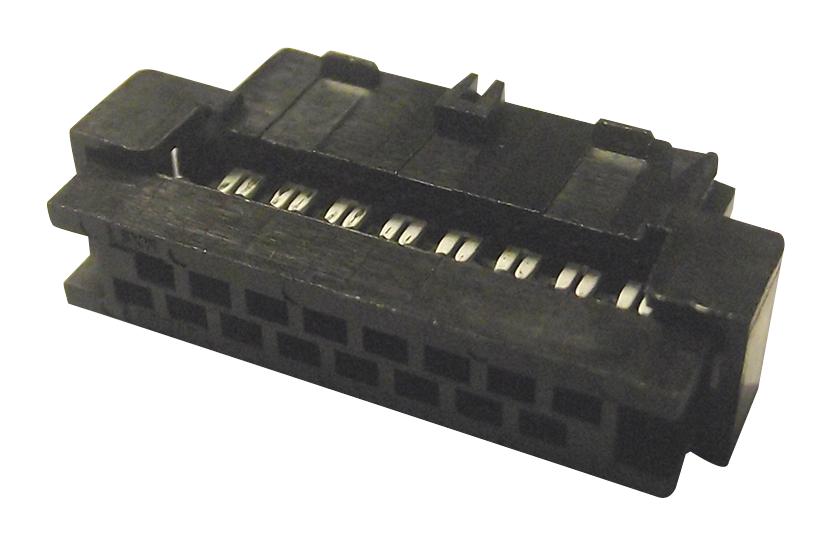

MOLEX 875681694 Cable Receptacle Connector
The Milli-Grid Cable-to-Board Receptacle is a dual-row, lead-free connector designed for reliable connections in electronic assemblies. Featuring 16 circuits with 0.76 micrometer gold selective plating, it offers excellent electrical performance and durability with up to 100 mating cycles. Its polarized design includes a center polarization key and a locking friction ramp for secure mating. Made from high-quality copper alloy with polyester resin insulation, it operates across -20°C to +85°C, supporting applications requiring high reliability and RoHS compliance in industrial and electronic equipment.
MOLEX 875681694 Cable Receptacle Connector Specifications:
- Number of Circuits: 16
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Polyester
- Color - Resin: Black
- Temperature Range - Operating: -20°C to +85°C
- Pitch - Mating Interface: 2.00mm
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Flammability: 94V-0
- Durability (mating cycles max): 100
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Stackable: No
- Panel Mount: No
- Wire Size AWG: 28
- Gender: Female
- RoHS Compliant, REACH SVHC not contained, Halogen-Free, Not Low-Halogen
Buy the Molex Series Milli-Grid Cable-to-Board Receptacle: 875681694
Purchase the Molex 875681694 Milli-Grid Cable-to-Board Receptacle online today to ensure high-quality, reliable connections in your electronic projects. Its dual-row design, 16 circuits, and gold-plated contacts provide excellent electrical conductivity and longevity. Perfect for industrial, automation, and circuit board applications, it offers polarization to prevent mis-mating, and withstands up to 100 mating cycles. RoHS compliant, with a compact 2.00mm pitch, this connector guarantees precise, secure, and environmentally friendly performance in demanding environments.
Buy Molex 875681694 now and experience unmatched reliability and performance in your electronic assemblies with this durable, lead-free connector.
Frequently Asked Questions
Where can I buy MOLEX 875681694?
You can click on the BUY or RFQ button to purchase 875681694 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 875681694?
You can download the 875681694 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 875681694?
MOLEX
