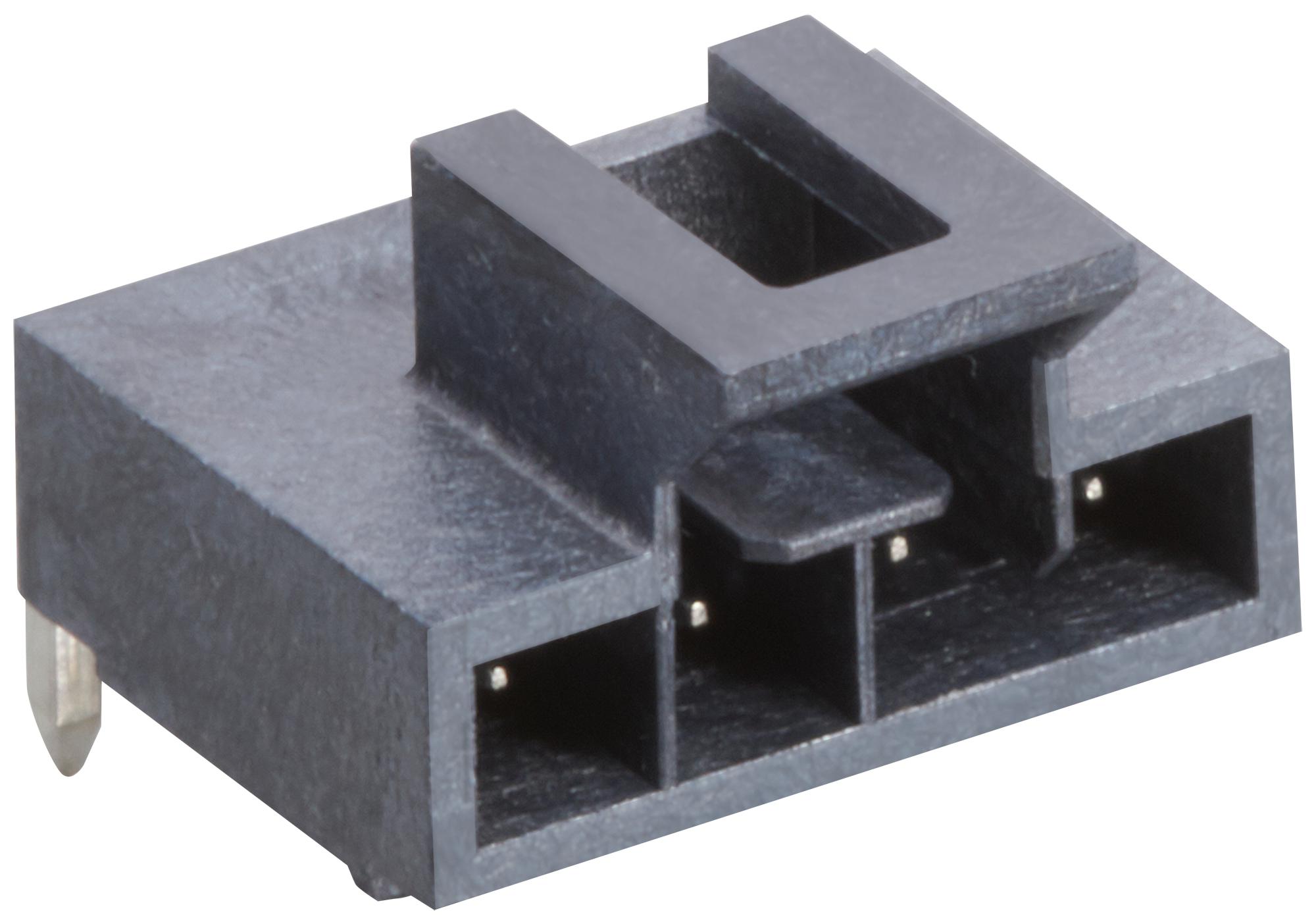

MOLEX 1053131304 Nano-Fit Power Connector
The MOLEX 105313-1304 Nano-Fit Power Connector is a right-angle header ideal for wire-to-board applications requiring a compact and reliable connection. It boasts a 2.50mm pitch and 4 circuits, making it suitable for various power delivery needs. The connector's gold-plated contacts ensure low contact resistance and excellent durability, while the liquid crystal polymer resin provides robust insulation. Its right-angle design simplifies PCB layout and reduces space requirements in enclosed applications. This connector is glow-wire capable and compliant with RoHS standards, ensuring suitability for a wide range of industrial and consumer electronics applications.
MOLEX 1053131304 Nano-Fit Power Connector Specifications:
- Part Number: 1053131304
- Status: Active
- Overview: Nano-Fit Power Connectors
- Description: Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Single Row, 4 Circuits, 0.76µm Gold (Au) Plating, Black, Glow-Wire Capable
- Series: 105313
- Application: Power, Wire-to-Board
- Circuits Loaded: 4
- Circuits Maximum: 4
- Color Resin: Black
- Durability Mating Cycles: 50
- Flammability: 94V-0
- Glow Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material Metal: Brass
- Material Plating Mating: Gold over Nickel
- Material Plating Termination: Tin over Nickel
- Material Resin: Liquid Crystal Polymer
- Net Weight: 0.510/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness Recommended: 1.60mm, 2.40mm
- Packaging Type: Tray
- Pitch Mating Interface: 2.50mm
- Pitch Termination Interface: 2.50mm
- Plating Min Mating: 0.762µm
- Plating Min Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible: No
- Current Maximum per Contact: 6.5A
- Voltage Maximum: 300V
- Temperature Range Operating: -40° to +115°C
- Termination Interface Style: Through Hole
