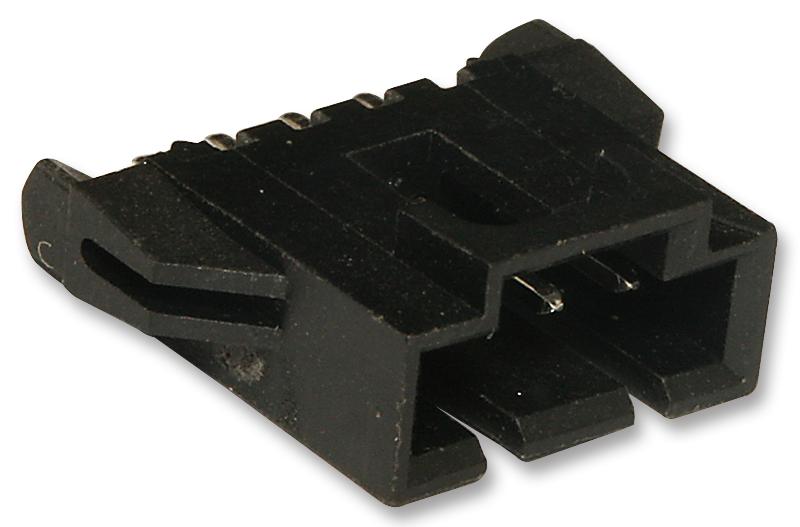

MOLEX 705450072 Signal Header
The 2.54mm Pitch SL Header is a vertical, shrouded, single-row connector with a 3.05mm pocket, designed for wire-to-board applications. Featuring 3 circuits, it has a gold (Au) selective plating and tin (Sn) PC tail plating, ensuring excellent electrical performance and corrosion resistance. This robust connector supports up to 50 mating cycles, operating within a temperature range of -40°C to +105°C. Made from high-temperature thermoplastic with metal components of brass and phosphor bronze, it complies with RoHS and UL safety standards, making it suitable for various industrial and electronic assembly environments.
MOLEX 705450072 Signal Header Specifications:
- Pitch: 2.54mm
- Number of Circuits: 3
- Color: Black
- Material - Metal: Brass, Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Tin
- Temperature Range: -40°C to +105°C
- Max Current per Contact: 3A
- Voltage - Max: 250V
- Durability (Maximum Mating Cycles): 50
- Flammability Rating: 94V-0
- Surface Mount Compatible: No
- Lock to Mating Part: Yes
- Polarity: Polarized to Mating Part: Yes
- Shrouded: Yes
- Stackable: No
- Material - Resin: High Temperature Thermoplastic
- PC Tail Length: 3.30mm
- PCB Thickness - Recommended: 1.60mm
Buy the Molex Series SL Signal Header: 705450072
Purchase the Molex signal header to ensure reliable electrical connections in your projects. This connector features a 2.54mm pitch, gold-plated contacts, and high-temperature thermoplastic housing for durability. Designed with three circuits and shrouded for secure mating, it supports up to 50 mating cycles and operates within a temperature range of -40°C to +105°C. Ideal for industrial, consumer, and embedded applications, this component ensures safety, long-lasting performance, and easy installation in your electronic assemblies.
Get Molex 705450072 today—built for secure, durable wire-to-board connections with high-temperature thermoplastic housing.
Frequently Asked Questions
Where can I buy MOLEX 705450072?
You can click on the BUY or RFQ button to purchase 705450072 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 705450072?
You can download the 705450072 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 705450072?
MOLEX
