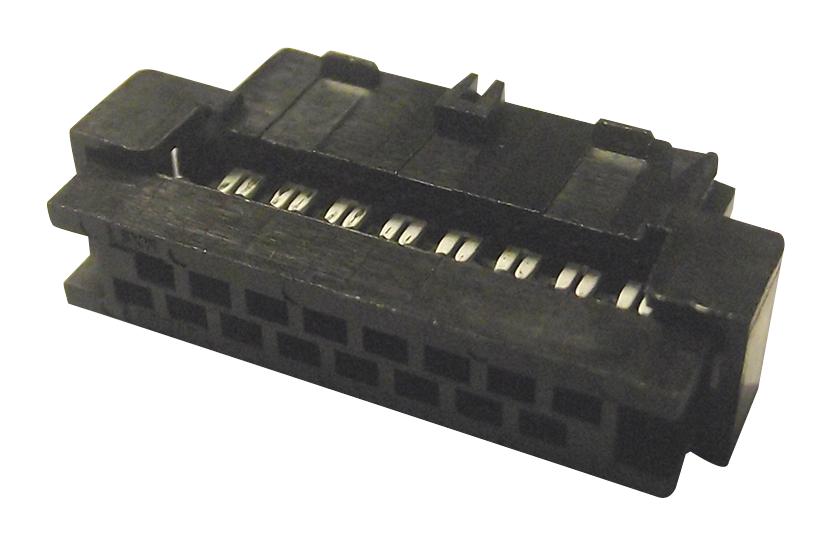

MOLEX 875682043 Cable Receptacle
The Milli-Grid Cable-to-Board Receptacle is a durable, high-reliability connector designed for PCB applications. It features a dual-row, lead-free construction with 20 circuits, gold (Au) selective plating, and a center polarization key for secure mating. Made from high-quality polyester resin with copper alloy contacts, it supports a temperature range of -20°C to +85°C and complies with RoHS, ELV, and REACH standards. Ideal for industrial and electronic equipment, this connector offers up to 100 mating cycles with a 0.38 um gold plating, ensuring long-lasting performance and reliable electrical connections.
MOLEX 875682043 Cable Receptacle Specifications:
- Series: Milli-Grid
- Number of Circuits: 20
- Maximum Circuits: 20
- Color - Resin: Black
- Flammability: UL94V-0
- Gender: Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Resin: Polyester
- Net Weight: 1.190 grams
- Number of Rows: 2
- Packaging Type: Tray
- Panel Mount: No
- Pitch - Mating Interface: 2.00mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -20°C to +85°C
- Termination Interface: Style: IDT or Pierce
- Wire Size AWG: 28
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- RoHS: Compliant
- ELV: Not relevant
- REACH SVHC: Not contained
- Halogen-Free: No
- Status: Active
Buy the Buy Molex Milli-Grid Cable-to-Board Receptacle Part Number 0875682043 Online
Order the Molex Milli-Grid Cable-to-Board Receptacle online today and benefit from high durability, lead-free construction, and gold-plated contacts. Designed for PCB connections, it features 20 circuits, polarization key for secure mating, and supports operating temperatures from -20°C to +85°C. Its RoHS compliance ensures environmentally friendly manufacturing. Perfect for industrial control, automation, and electronic assembly, this connector guarantees long-lasting, reliable electrical connections with up to 100 mating cycles for your critical applications.
Buy Molex 0875682043 now and experience unmatched reliability and performance in your electronic or industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 875682043?
You can click on the BUY or RFQ button to purchase 875682043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 875682043?
You can download the 875682043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 875682043?
MOLEX
