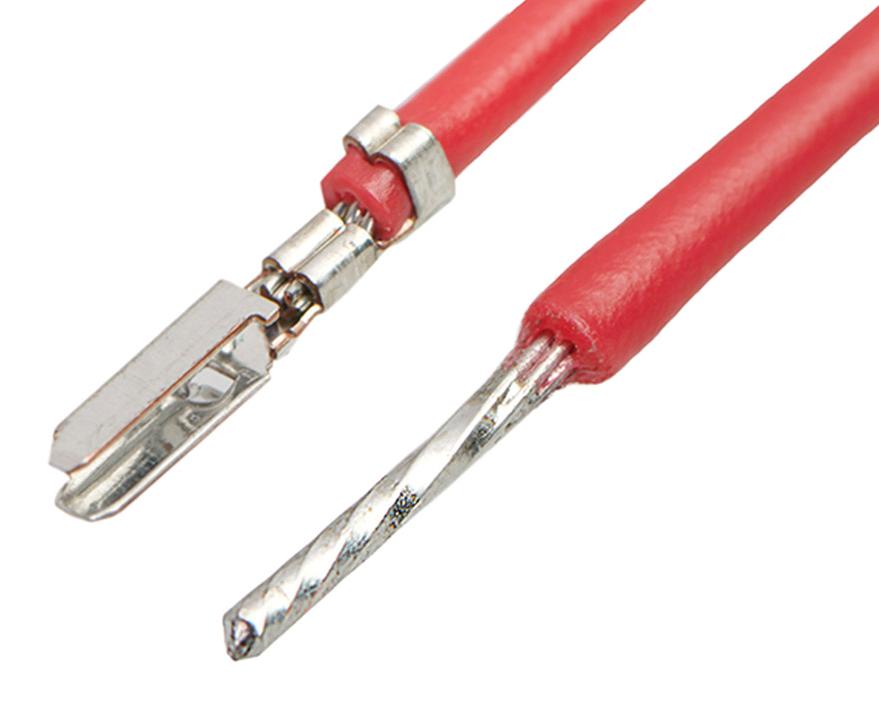

MOLEX 2157112125 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-2125 is a pre-crimped lead assembly within the CLIK-Mate series, offering a convenient and reliable connection solution for wire-to-board applications. This assembly features a male-to-pigtail configuration, ensuring compatibility with CLIK-Mate connectors. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance. Designed for signal transmission, this lead is ideal for various industrial and commercial applications requiring secure and efficient electrical connections. It is RoHS compliant and features a halogen-free status.
MOLEX 2157112125 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 1.520/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- use_with: CLIK-Mate Housing 502578, 503149
- sales_drawing: 2157111121-000
