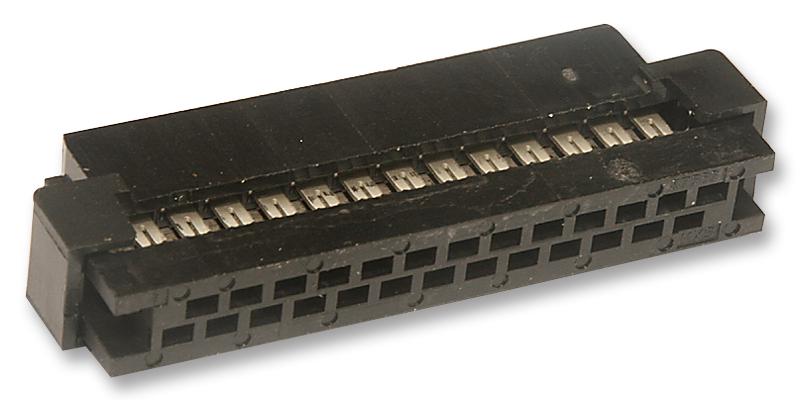

MOLEX 875682643 Cable-to-Board Receptacle
The Milli-Grid Cable-to-Board Receptacle is a dual-row, lead-free connector system designed for reliable PCB connections. It features 26 circuits with 0.38 µm gold selective plating, a center polarization key for correct mating, and no locking friction ramp. The receptacle is suitable for applications requiring up to 100 mating cycles, operating in temperatures from -20°C to +85°C. Made from durable polyester resin with copper alloy contacts, it ensures high electrical performance with a maximum current of 1A per contact and voltage rating of 125V. Certified by CSA and UL, this connector offers RoHS and China RoHS compliance, ensuring eco-friendly and safe operation.
MOLEX 875682643 Cable-to-Board Receptacle Specifications:
- Number of Circuits: 26
- Color - Resin: Black
- Material - Contact: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Polyester
- Durability (max mating cycles): 100
- Flammability: 94V-0
- Temperature Range - Operating: -20°C to +85°C
- Pitch - Mating Interface: 2.00mm
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Gender: Female
- Stackable: No
- Polarized to Mating Part: Yes
- Lock to Mating Part: None
- Termination Interface: IDT or Pierce
- Net Weight: 1.481g per unit
Buy the Molex Series Milli-Grid Cable-to-Board Receptacle: 875682643
Enhance your electronic assemblies with the Molex Series Milli-Grid Cable-to-Board Receptacle, featuring 26 circuits, gold-plated contacts, and a polarization key for secure mating. Designed for durability with up to 100 mating cycles and operating within -20°C to +85°C, this high-quality connector is RoHS compliant, lead-free, and certified by UL and CSA. Its compact 2.00mm pitch ensures space-saving installation while providing reliable electrical performance for PCB applications. Purchase online today for dependable, environmentally friendly connections.
Order your Molex Series Milli-Grid 875682643 today and ensure reliable PCB connections for your electronic projects with high durability and eco-friendly design.
