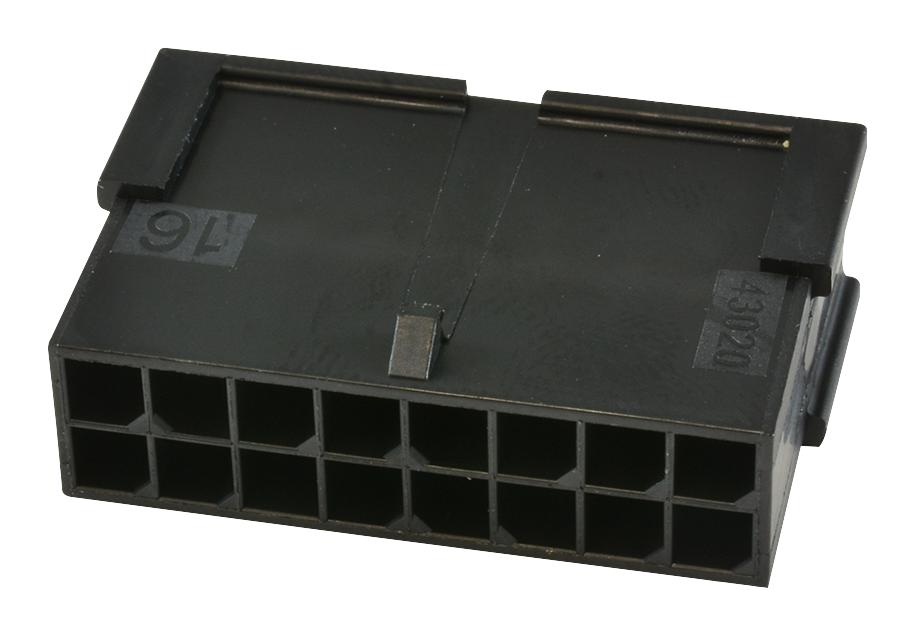

MOLEX 430201601 Micro-Fit 3.0 Plug Housing
The MOLEX 43020-1601 is a Micro-Fit 3.0 plug housing within the Micro-Fit 3.0 Connector System Product Family. This dual-row housing accommodates 16 circuits and is constructed from black nylon resin, offering durability and insulation. It is UL 94V-0 rated, indicating excellent flame retardancy, and designed for wire-to-wire power applications. The housing features a polarized design for secure mating and includes a locking mechanism for added reliability. It is commonly used in automotive, industrial, and consumer electronics applications where robust and dependable power connections are required.
MOLEX 430201601 Micro-Fit 3.0 Plug Housing Specifications:
- circuits_maximum: 16
- color_resin: Black
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.707
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40 to +105
- lead_free_process_capability: N/A
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per - ED/61/2018
- halogen_free_status: Not Low-Halogen
- series: 43020
Buy the 43020-1601 MOLEX Micro-Fit 3.0 Plug Housing | myMectronic
Purchase the MOLEX 43020-1601 Micro-Fit 3.0 Plug Housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 430201601?
You can click on the BUY or RFQ button to purchase 430201601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430201601?
You can download the 430201601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430201601?
MOLEX
