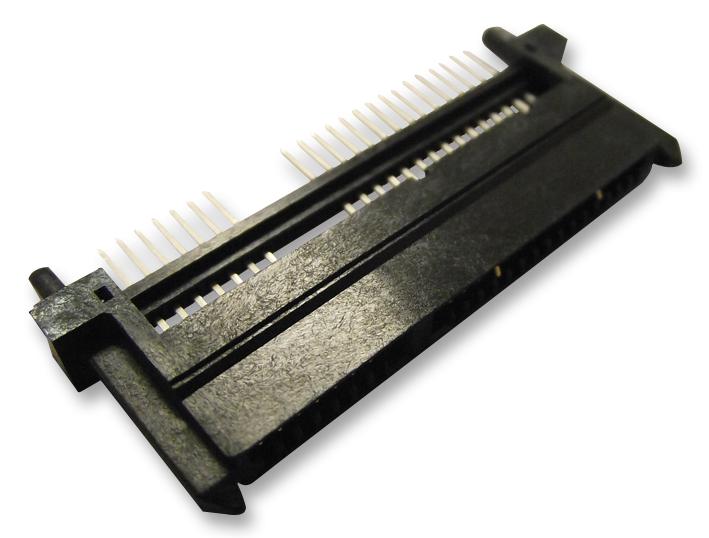

MOLEX 876781001 Serial ATA Connector
The serial ATA connector features a 1.27mm pitch, 22 circuits, and a through-hole, vertical, extended height design suitable for PCB board-to-board applications. Constructed from copper with gold and tin plating, it offers high durability with up to 500 mating cycles. Operating within -40°C to +105°C, this RoHS-compliant connector provides reliable electrical performance at a maximum 1.5A per contact and 30V. Its compact design includes a PCB tail length of 3.45mm, making it ideal for space-constrained electronic assemblies requiring high-speed data and power connections.
MOLEX 876781001 Serial ATA Connector Specifications:
- Pitch: 1.27mm
- Circuits: 22
- Material: Copper
- Plating: Gold (mating), Tin (termination)
- Durability: 500 mating cycles
- Operating Temperature: -40°C to +105°C
- Maximum Current: 1.5A per contact
- Maximum Voltage: 30V
- Net Weight: 1.897g
- PC Tail Length: 3.45mm
- PCB Thickness - Recommended: 0.80mm - 2.50mm
- Polarity: Polarized to mating part and PCB
- Surface Mount Compatibility: Yes
- Flammability: 94V-0
- RoHS, China RoHS, Halogen-Free, Low-Halogen compliant
Buy the Buy Micro Serial ATA Connector Part Number 0876781001 Online
Order the Molex Serial ATA Connector with part number 0876781001 online today to ensure secure, reliable data and power connections for your electronic projects. With a 1.27mm pitch, 22 circuits, and a vertical through-hole design, this connector is optimized for high-performance PCB applications. Constructed from durable copper, gold, and tin, it offers up to 500 mating cycles, operating efficiently from -40°C to +105°C. Perfect for space-constrained environments requiring robust and compliant connectors with RoHS certification.
Buy Molex 0876781001 now and experience unmatched reliability and high-speed data transfer in PCB applications.
Frequently Asked Questions
Where can I buy MOLEX 876781001?
You can click on the BUY or RFQ button to purchase 876781001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 876781001?
You can download the 876781001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 876781001?
MOLEX
