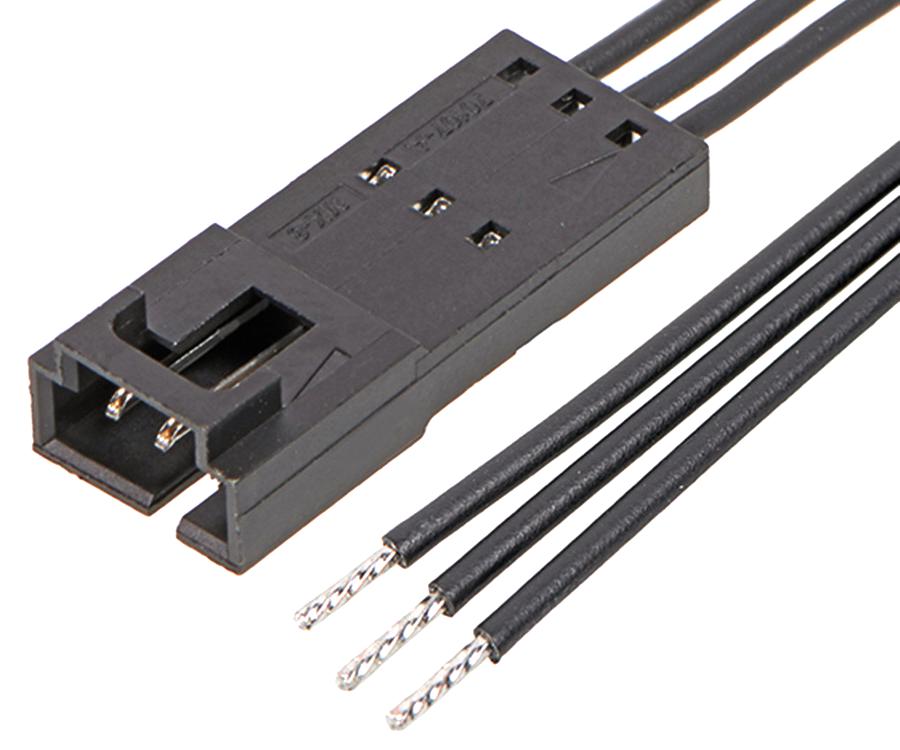

MOLEX 2162731030 Stackable Signal Connector
This versatile off-the-shelf stackable linear positive lock cable assembly is ideal for prototyping and mass production in consumer electronics, industrial, automotive, and medical sectors. The connector supports multiple termination styles including crimp, FFC, and IDT, and features independent contacts ensuring reliable electrical performance. Its TPA lock prevents disconnection in high-vibration conditions. Made with a polyester alloy housing and tin-plated phosphor bronze contacts, it operates up to 600V AC/DC, handling currents up to 3A, and withstands temperatures from -40°C to +105°C. Rated for 25 mating cycles, it offers a sturdy, vibration-resistant connection solution.
MOLEX 2162731030 Stackable Signal Connector Specifications:
- Series: 216273
- Application: Consumer electronics, industrial, automotive, data, medical, telecommunications
- Assembly Configuration: Connector to connector
- Cable Length: 50.0mm
- Circuits: 3
- Color - Resin: Black
- Gender: Male - Pigtail
- Material - Metal: Phosphor bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester alloy
- Net Weight: 1.923 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max
- Wire Size AWG: 22
- Wire/Cable Type: Discrete wire
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature: -40°C to +105°C
- Rated Mating Cycles: 25
- Compliance: UL, CSA, RoHS, China RoHS, REACH SVHC
Buy the Molex Series 216273 Signal Connector: 2162731030
Order the Molex 2162731030 stackable linear positive lock cable assembly online today. Designed for versatile applications including consumer electronics, industrial machines, and automotive systems, it features three circuits, crimp and FFC termination options, and a robust construction rated for 600V and 3A operation. Its reliable, vibration-resistant design with a TPA lock ensures long-term stability even in demanding environments. Perfect for prototyping, mass production, and critical applications requiring secure, durable, and high-quality electrical connections.
Buy Molex 2162731030 now and experience unmatched reliability and performance in secure, vibration-resistant electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 2162731030?
You can click on the BUY or RFQ button to purchase 2162731030 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731030?
You can download the 2162731030 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731030?
MOLEX
