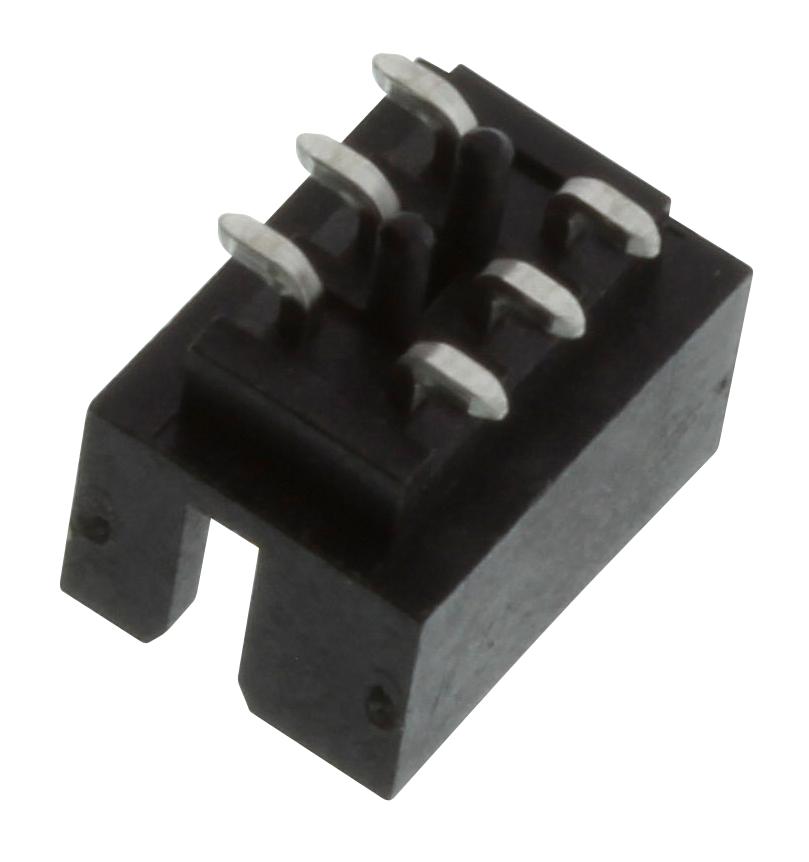

MOLEX 878320420 Milli-Grid Header
The MOLEX 87832-0420 Milli-Grid Header is a robust connector solution designed for surface mount technology. It offers 4 circuits and a vertical orientation, making it ideal for space-constrained applications. The shrouded design provides protection against environmental factors and accidental contact. Constructed with phosphor bronze and plated with gold and tin, this connector ensures reliable electrical connections. It is commonly used in automotive and industrial applications where secure and durable connectivity is essential.
MOLEX 878320420 Milli-Grid Header Specifications:
- overview: Milli-Grid Connector System
- description: Milli-Grid Header, Surface Mount, Vertical, Shrouded, Lead-Free, 4 Circuits, 0.38µm Gold (Au) Plating
- series: 87832
- application: Automotive industry
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- durability_mating_cycles: 100
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- guide_to_mating_part: No
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- plating_mating: Gold (0.381µm min)
- plating_termination: Tin (1.905µm min)
- material_resin: Nylon
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: None
- packaging_type: Tube
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- polarized_to_pcb: No
- shrouded: Yes
- fully_stackable: No
- surface_mount_compatible: Yes
- temperature_range_operating: -55° to +105°C
- halogen_free_status: Not Low-Halogen
- current_maximum_per_contact: 2.0A
- voltage_maximum: 125V
- lead_free_process_capability: REFLOW
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
- termination_interface_style: Surface Mount
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
