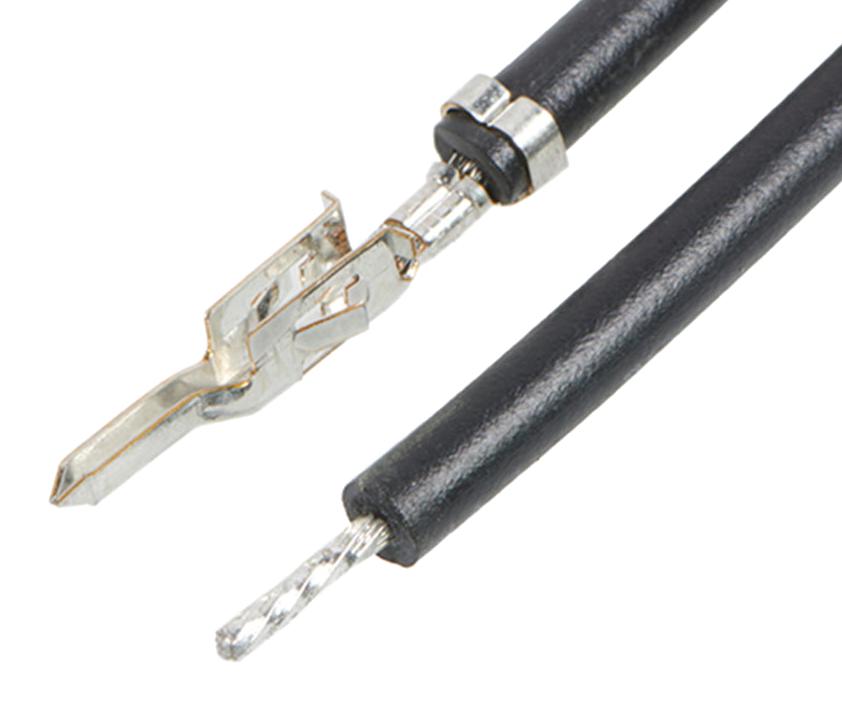

MOLEX 2153431121 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-1121 is an off-the-shelf pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly combines a Mini-Fit Jr. male connector with a pigtail termination, providing a pre-terminated solution that simplifies integration into various systems. The tin plating on both the mating and termination interfaces ensures excellent conductivity and corrosion resistance. It is suitable for applications requiring a robust and reliable electrical connection, commonly found in industrial equipment, automotive systems, and consumer electronics.
MOLEX 2153431121 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 75.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 2.137/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560196
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
