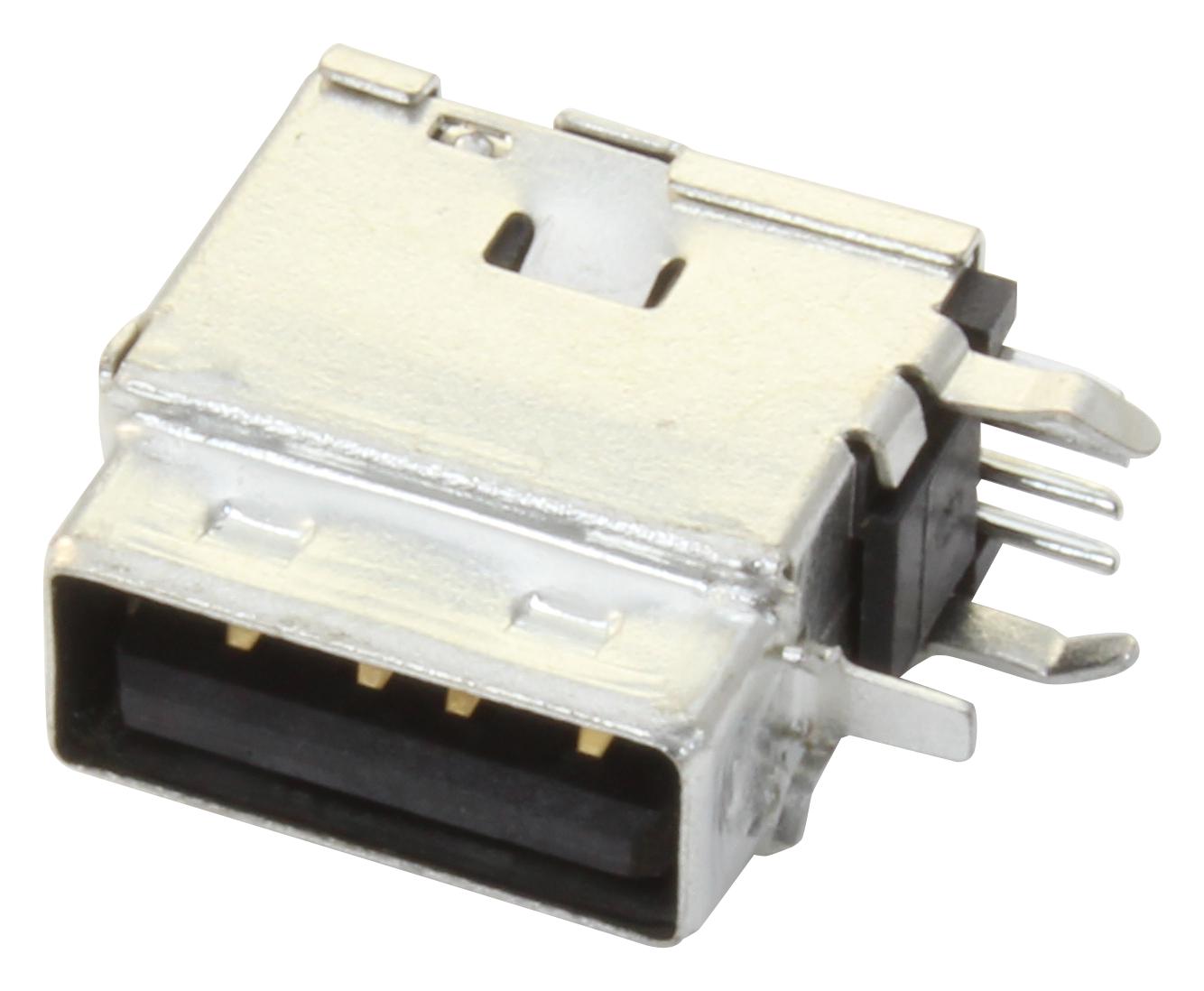

MOLEX 894858003 USB Receptacle
The USB 2.0 Type A Receptacle is a shielded, upright, right-angle connector designed for wire-to-board applications. Made from high-temperature thermoplastic resin with a black color, it features 94V-0 flammability and a gold-plated mated contact surface for reliable connectivity. With a terminal length of 2.50mm and a gold plating of 0.76um, it accommodates up to 4 circuits and supports operating temperatures from 0°C to +50°C. Its full shield design ensures excellent EMI protection, making it ideal for compact and high-performance electronic assemblies.
MOLEX 894858003 USB Receptacle Specifications:
- Flammability: UL 94V-0
- Material: High-temperature thermoplastic resin
- Color: Black
- Plating - Mating: 0.76um Gold
- Plating - Termination: Tin
- Terminal Length: 2.50mm
- Circuits: 4 maximum
- Voltage Rating: 750V AC (RMS)
- Current per contact: 1.0A
- Temperature Range: 0°C to +50°C
- Shield Type: Full shield
- Component Type: Receptacle
- Orientation: Upright, right-angle
- Waterproof / Dustproof: No
Buy the Buy Molex USB 2.0 Type A Part Number 894858003 Online
Secure your electronic assemblies with the Molex USB Receptacle, offering shielded, gold-plated contacts at a 2.50mm terminal length for dependable performance. Designed for wire-to-board connections, this black high-temperature thermoplastic component supports up to 4 circuits and ensures EMI protection with a full shield. Rated for 750V AC and 1.0A current per contact, it is suitable for applications requiring durability and high reliability. Purchase online now for fast delivery and top-quality connectivity solutions.
Order your Molex Series89485 USB 2.0 Type A receptacle today and enhance your electronic projects with reliable, shielded connectivity solutions.
Frequently Asked Questions
Where can I buy MOLEX 894858003?
You can click on the BUY or RFQ button to purchase 894858003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 894858003?
You can download the 894858003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 894858003?
MOLEX
