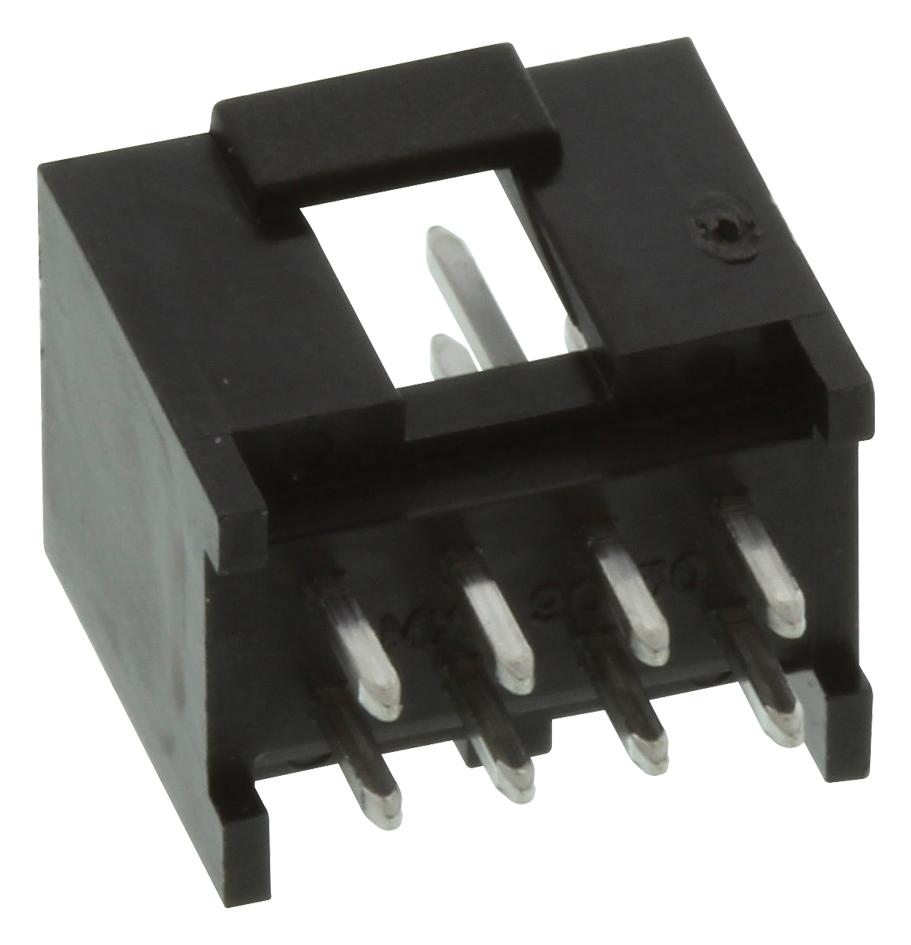

MOLEX 901301108 PCB Header
The C-Grid III Header is a dual row, vertical, shrouded, fully loaded PCB connector with 8 circuits designed for signal and wire-to-board applications. Constructed with brass metal, tin plating over nickel surface, and polyester resin insulation, it features a 2.54mm pitch and a maximum operating temperature of -55°C to +125°C. The connector supports up to 30 mating cycles, has a 3A current capacity per contact, and is UL and CSA certified. It is suitable for various electronic and industrial applications requiring reliable, durable, and RoHS-compliant interconnects.
MOLEX 901301108 PCB Header Specifications:
- Number of Circuits: 8
- Colors: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Plating Min - Mating: 3.048µm
- Plating Min - Termination: 3.048µm
- Operating Temperature Range: -55°C to +125°C
- Current per Contact: 3.0A
- Voltage Max: 350V AC/DC
- Physical: PCB thickness 1.60mm, PCB length 2.90mm
- Orientation: Vertical
- Guide to Mating Part No: 90142
- Termination Interface Style: Through Hole
- Rating: UL E29179, CSA LR19980
- Packaging: Tray
- Durability: Up to 30 mating cycles
- Flammability: 94V-0
- RoHS: Compliant
- Halogen-Free: No
- Guide to Mating Part No: 90142
Buy the Molex Series 90130 C-Grid III: 8 Circuit Vertical PCB Header
Enhance your electronic assemblies with the Molex PCB Header, designed for reliable signal connections. Featuring dual row vertical shrouded design, 8 circuits, and a 2.54mm pitch, it ensures stable performance with a maximum current of 3A per contact. Made from durable brass and polyester resin, with tin plating for corrosion resistance, it operates efficiently from -55°C to +125°C. Certified by UL and CSA, this RoHS-compliant connector is perfect for industrial and electronic applications requiring high durability and precise connections.
Get Molex 901301108 today—built for precision, durability, and reliable wire-to-board connections in demanding environments.
