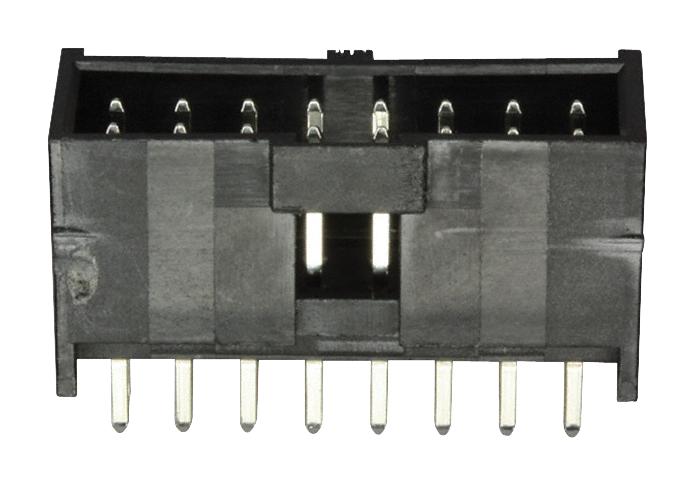

MOLEX 901301140 PCB Connector
The C-Grid III Header is a versatile PCB connector designed for signal applications, featuring dual rows with 40 circuits, shrouded, vertical orientation, and tin over nickel plating for enhanced durability. It supports up to 30 mating cycles, operates within a temperature range of -55°C to +125°C, and is RoHS compliant. Made from high-quality materials including brass with polyester resin, it ensures reliable performance in wire-to-board connections, making it ideal for complex electronic systems requiring robust and secure signal interfacing.
MOLEX 901301140 PCB Connector Specifications:
- Product Family: PCB Headers
- Series: 90130
- Application: Signal, Wire-to-Board
- Number of Circuits: 40 (maximum)
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating: Mating Tin, Termination Tin (min 3.048um)
- Material - Resin: Polyester
- Orientation: Vertical
- Guide to Mating Part No: None
- Lock to Mating Part: Yes
- First Mate / Last Break: No
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Temperature Range - Operating: -55°C to +125°C
- PC Tail Length: 2.90mm
- Pitch - Mating Interface: 2.54mm
- Voltage - Max: 350V AC/DC
- Current - Max per Contact: 3.0A
- Packaging Type: Tray
- Shrouded Closed Ends
- PCB Thickness - Recommended: 1.60mm
Buy the Buy Molex C-Grid III Part Number 901301140 Online
Purchase the Molex C-Grid III PCB connector today and benefit from a durable, high-quality connector designed for signal and wire-to-board applications. With 40 circuits, shrouded design, and tin over nickel plating, this connector provides reliable, secure connections for complex electronic systems. Suitable for -55°C to +125°C operating temperatures, it supports up to 30 mating cycles, ensuring longevity and consistent performance. Trust Molex for quality electronic components that enhance your project's reliability and efficiency.
Get Molex 901301140 today—designed for reliable signal connections with robust durability and a high mating cycle life.
Frequently Asked Questions
Where can I buy MOLEX 901301140?
You can click on the BUY or RFQ button to purchase 901301140 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901301140?
You can download the 901301140 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901301140?
MOLEX
