MOLEX 901362102 PCB Header

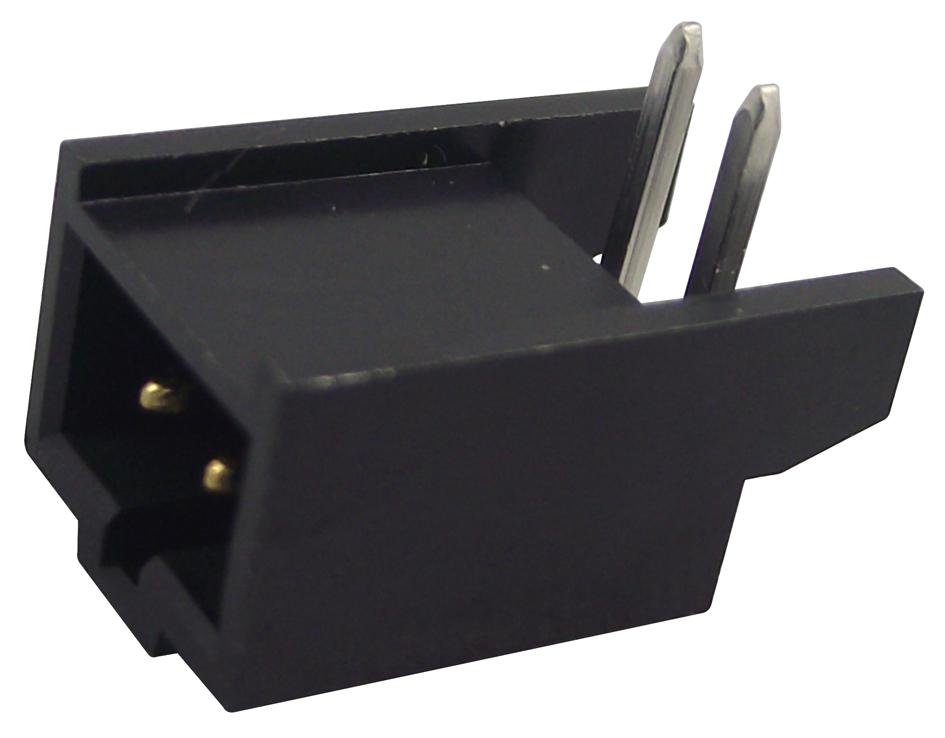

The C-Grid Ill Header is a right-angle, shrouded PCB connector with 2 circuits, designed for signal applications. Made from durable polyester resin with brass metal contacts plated in gold and tin, it is rated for operational temperatures from -55°C to 125°C. Suitable for wire-to-board connections, it features a pitch of 2.54mm, fully shrouded for secure mating, and complies with RoHS standards. The connector is ideal for compact, reliable electrical signal connections in various electronic assemblies, offering easy installation and robust performance.
MOLEX 901362102 PCB Header Specifications:
- Number of Circuits: 2
- Material - Metal: Brass
- Plating - Mating: Gold
- Plating - Termination: Tin
- Color: Black
- Flammability: 94V-0
- Operating Temperature Range: -55°C to +125°C
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Through Hole
- PCB Thickness - Recommended: 1.60mm
- Physical Dimensions: Guide pin length 2.90mm
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Packaging: Tray
- Shrouded Fully: Yes
- Lock to Mating Part: Yes
Buy the Buy Molex C-Grid Ill Part Number 0901362102 Online
Purchase the Molex C-Grid Ill PCB Header online today and ensure secure, reliable signal connections for your electronic projects. This high-quality, right-angle, shrouded connector is designed for durability and easy installation, with gold and tin plating for extended contact life. With a pitch of 2.54mm, rated for -55°C to 125°C, and built to RoHS standards, it’s ideal for compact assemblies. Order now to benefit from quick delivery and technical support for your signal wiring needs.
Buy Molex 0901362102 now and experience unmatched reliability and performance in signal wire-to-board connections, with durable construction and secure locking features.
Frequently Asked Questions
Where can I buy MOLEX 901362102?
You can click on the BUY or RFQ button to purchase 901362102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901362102?
You can download the 901362102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901362102?
MOLEX
