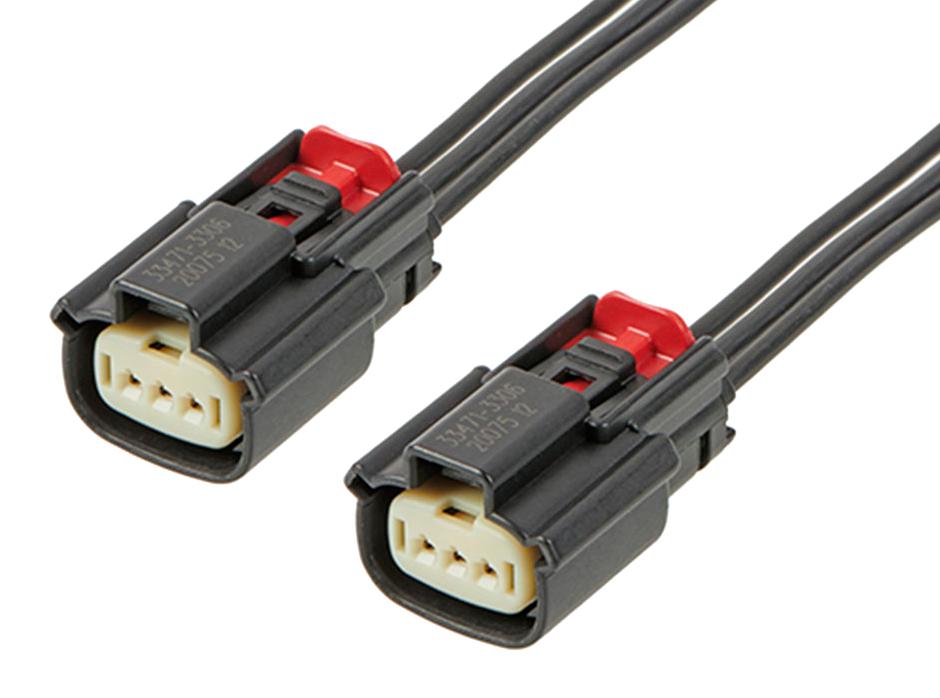

MOLEX 2162801031 MX150 Cable Assembly
The MOLEX 216280-1031 is a robust MX150 Female-to-Female Off-the-Shelf (OTS) Cable Assembly designed for reliable power transmission and connectivity in various industrial applications. This assembly boasts a 150mm length, tin plating on both mating and termination interfaces, and a 3-circuit configuration. Constructed with a high-performance alloy (HPA) for the metal components and SPS/Nylon for the resin, it ensures durability and signal integrity. It is suitable for wire-to-board and wire-to-wire connections, offering a secure and efficient solution for demanding environments.
MOLEX 2162801031 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 150.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 187.600/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714322
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
