MOLEX 901362104 PCB Header Connector
The C-Grid Ill Header is a right-angle, shrouded connector with a single row of 4 circuits designed for signal and wire-to-board applications. Constructed with durable brass and plated with gold for mating and tin for termination, it features a pitch of 2.54mm, a maximum voltage of 350V AC/DC, and a current rating of 3.0A per contact. Its operating temperature range is -55° to +125°C, and it is RoHS compliant. The connector is suitable for PCB thicknesses of 1.60mm, with a height of 2.90mm tail length, making it ideal for reliable, high-quality signal connections in various electronic assemblies.
MOLEX 901362104 PCB Header Connector Specifications:
- Number of Circuits: 4
- Orientation: Right Angle
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating - Mating: Gold
- Material - Plating - Termination: Tin
- Material - Resin: Polyester
- Flammability: 94V-0
- Temperature Range: -55°C to +125°C
- Maximum Voltage: 350V AC/DC
- Maximum Current: 3.0A per contact
- Pitch - Mating Interface: 2.54mm
- PCB Thickness - Recommended: 1.60mm
- PC Tail Length: 2.90mm
- Lock to Mating Part: Yes
- Shrouded: Fully
- Certification: RoHS, UL, CSA
- Packaging: Tray

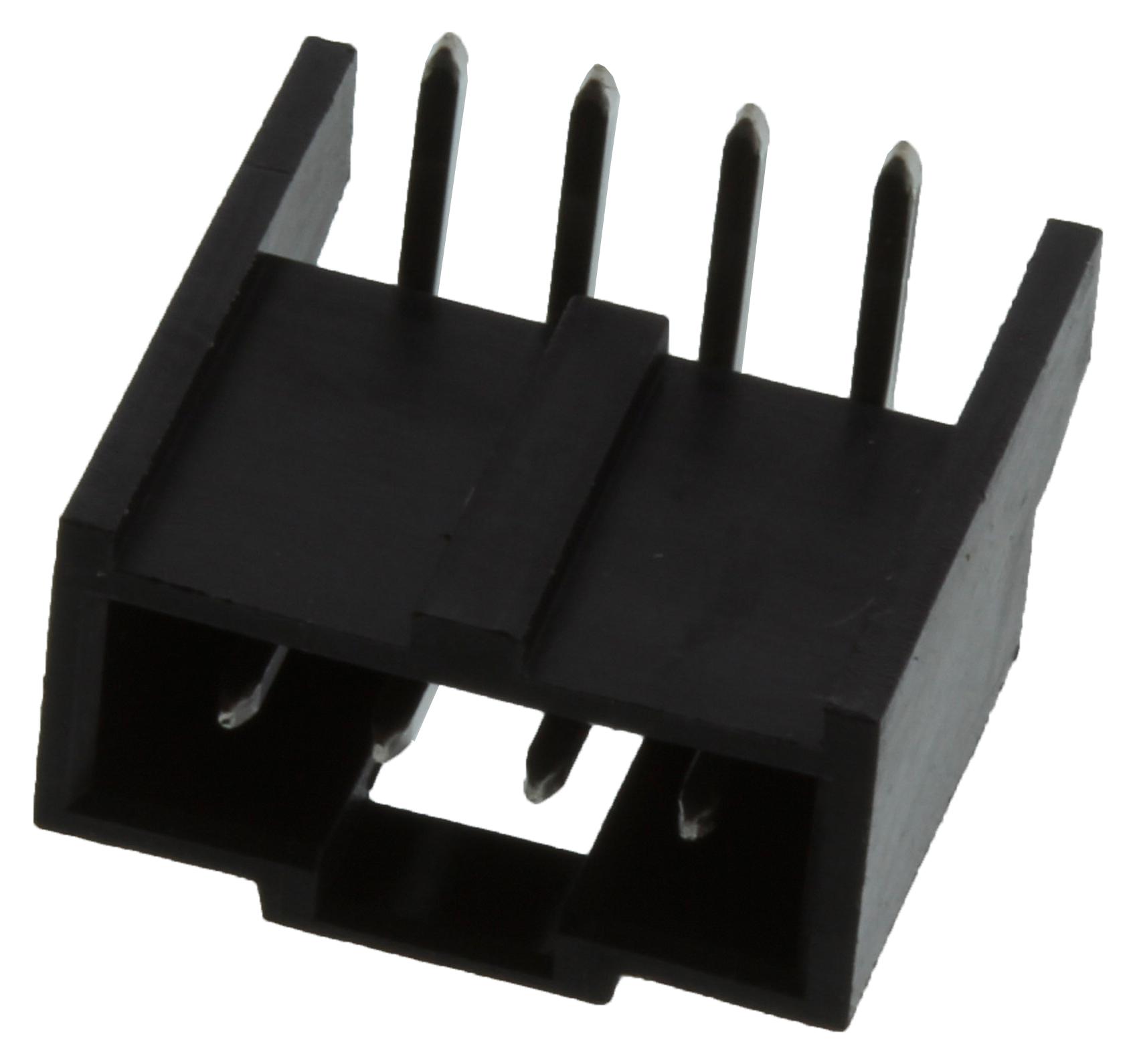

Buy the Buy Molex C-Grid Ill Part Number 0901362104 Online
Secure your electronic assemblies with the Molex C-Grid Ill Header featuring a 4-circuit, right-angle, shrouded design with 2.54mm pitch, RoHS compliance, and temperature resilience. Perfect for signal and wire-to-board applications, it provides durable gold and tin plating for reliable connectivity. With a maximum voltage of 350V and a current rating of 3.0A per contact, it fits PCB thicknesses of 1.60mm. Trust this high-quality component for efficient, safe, and long-lasting electronic connections.
Order your Molex Series90136 C-Grid Ill connector today and ensure reliable high-quality signal connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 901362104?
You can click on the BUY or RFQ button to purchase 901362104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901362104?
You can download the 901362104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901362104?
MOLEX
