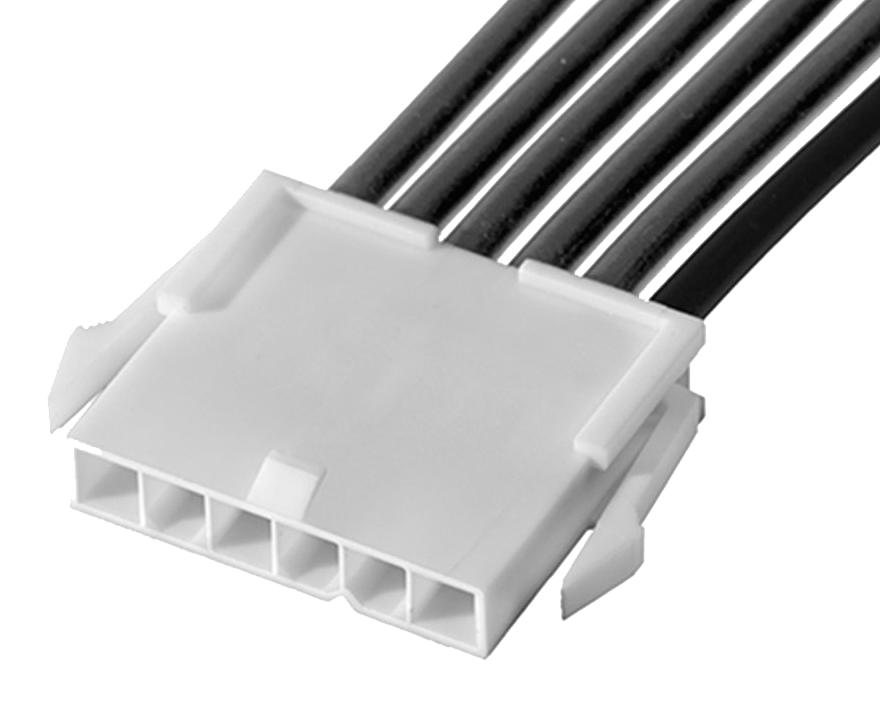

MOLEX 2153201061 Mini-Fit Jr. Power Connector Assembly
This Mini-Fit Jr. Female-to-Female Cable Assembly connects two Mini-Fit Jr. connectors with six circuits, offering a 150mm length with tin plating for reliable performance. Designed for power and wire-to-wire applications, it features high-quality brass contacts, black resin housing, and a secure crimp or compression termination interface suitable for wire sizes from 1.80 to 3.10mm diameter. The assembly supports a maximum current of 9.0A and a voltage of 600V, and is RoHS and REACH compliant, making it ideal for electronic and power distribution applications.
MOLEX 2153201061 Mini-Fit Jr. Power Connector Assembly Specifications:
- Cable Length: 150.00mm
- Circuits: 6
- Color: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 28.250g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Plating Min - Mating: 0.889um
- Plating Min - Termination: 0.889um
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Compliance: RoHS, REACH SVHC Not Contained
Buy the Buy Molex Mini-Fit Jr. Female-to-Female Cable Assembly Part Number 2153201061 Online
Purchase the Molex Mini-Fit Jr. female-to-female cable assembly with 6 circuits and 150mm length online today. This high-quality power connector features tin-plated brass contacts, nylon housing, and supports up to 9A at 600V, making it ideal for power and electronic applications. Its secure crimp or compression termination guarantees reliable connections, meeting RoHS and REACH standards. Whether for industrial, automotive, or consumer electronics, this assembly offers durability, efficiency, and ease of installation, ensuring optimal performance in your projects.
Buy Molex 2153201061 now and experience unmatched reliability and performance with high-quality power connectors and secure wire termination.
Frequently Asked Questions
Where can I buy MOLEX 2153201061?
You can click on the BUY or RFQ button to purchase 2153201061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153201061?
You can download the 2153201061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153201061?
MOLEX
