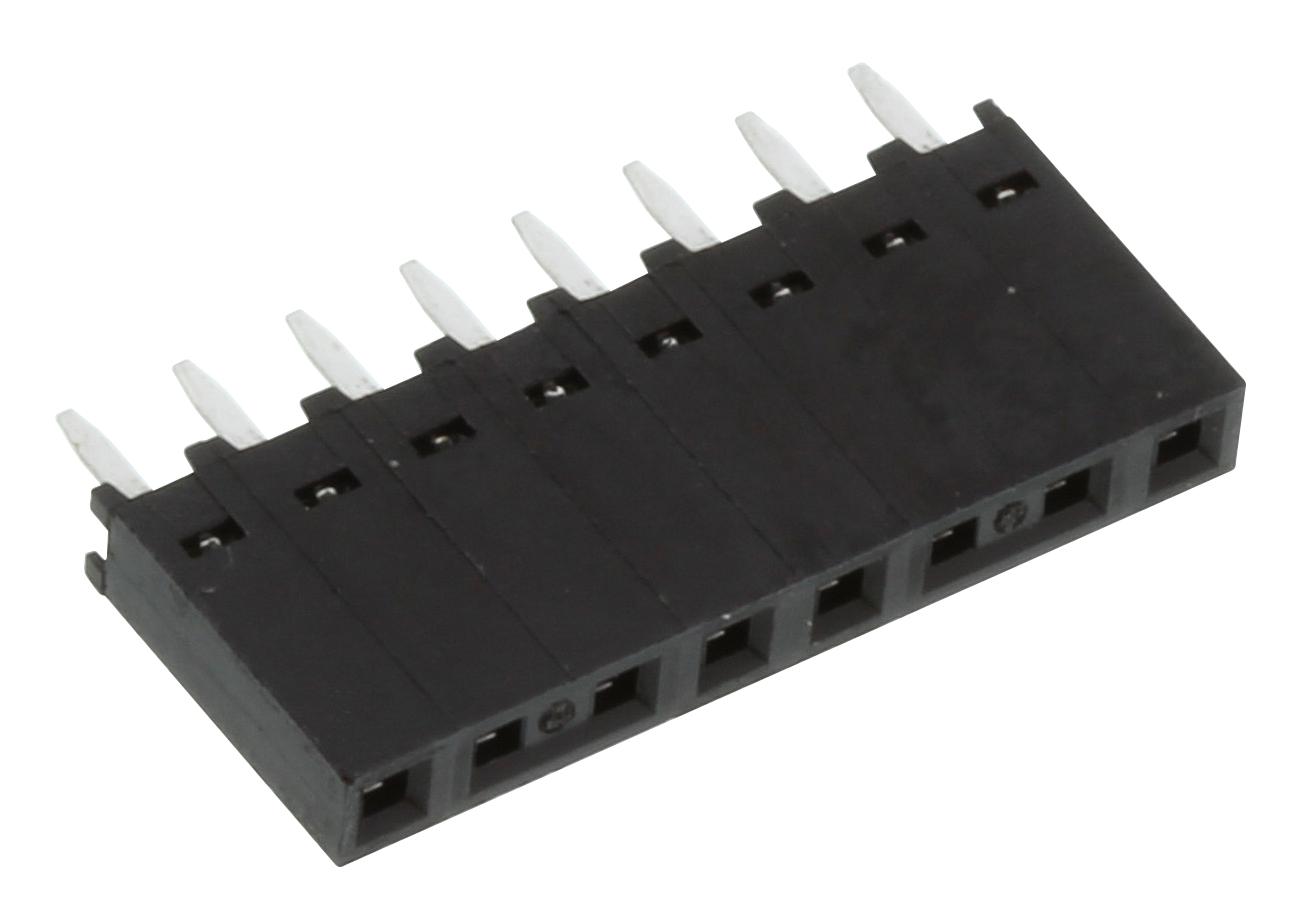

MOLEX 901471114 PCB Connector
The C-Grid PC Board Connector is a reliable, vertical, single-row, 14-circuit connector with tin-plated phosphor bronze contacts, designed for board-to-board signal applications. It features a 2.54mm pitch, RoHS and UL compliant, and supports operating temperatures from -55°C to +105°C. The connector is suitable for PCB mount, with a PCB thickness of 1.60mm and a net weight of approximately 1.204 grams. Ideal for electronic assemblies requiring precise, secure connections with high durability and compliance standards.
MOLEX 901471114 PCB Connector Specifications:
- Circuits (Loaded): 14
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 1.204 grams
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 2.90mm
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tube
- Pitch - Mating Interface: 2.54mm
- Voltage - Maximum: 350V
- Current - Maximum per Contact: 3.0A
- Temperature Range - Operating: -55°C to +105°C
- Termination Interface: Style: Through Hole
- Surface Mount Compatible (SMC): No
Buy the Buy Molex C-Grid Connector Part Number 0901471114 Online
Purchase the Molex PCB Connector for efficient signal and data transmission in electronic assemblies. Featuring 14 circuits, tin-plated contacts, and a 2.54mm pitch, this connector ensures secure, durable connections suitable for various PCB configurations. Its robust construction withstands temperatures from -55°C to +105°C, making it ideal for industrial, consumer, and communications applications. Order now to benefit from fast shipping, quality assurance, and industry-standard performance that guarantees maximum reliability for your electronic projects.
Get Molex 0901471114 today—designed for high-reliability electronic connections with standard 2.54mm pitch and UL and RoHS compliance.
Frequently Asked Questions
Where can I buy MOLEX 901471114?
You can click on the BUY or RFQ button to purchase 901471114 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901471114?
You can download the 901471114 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901471114?
MOLEX
