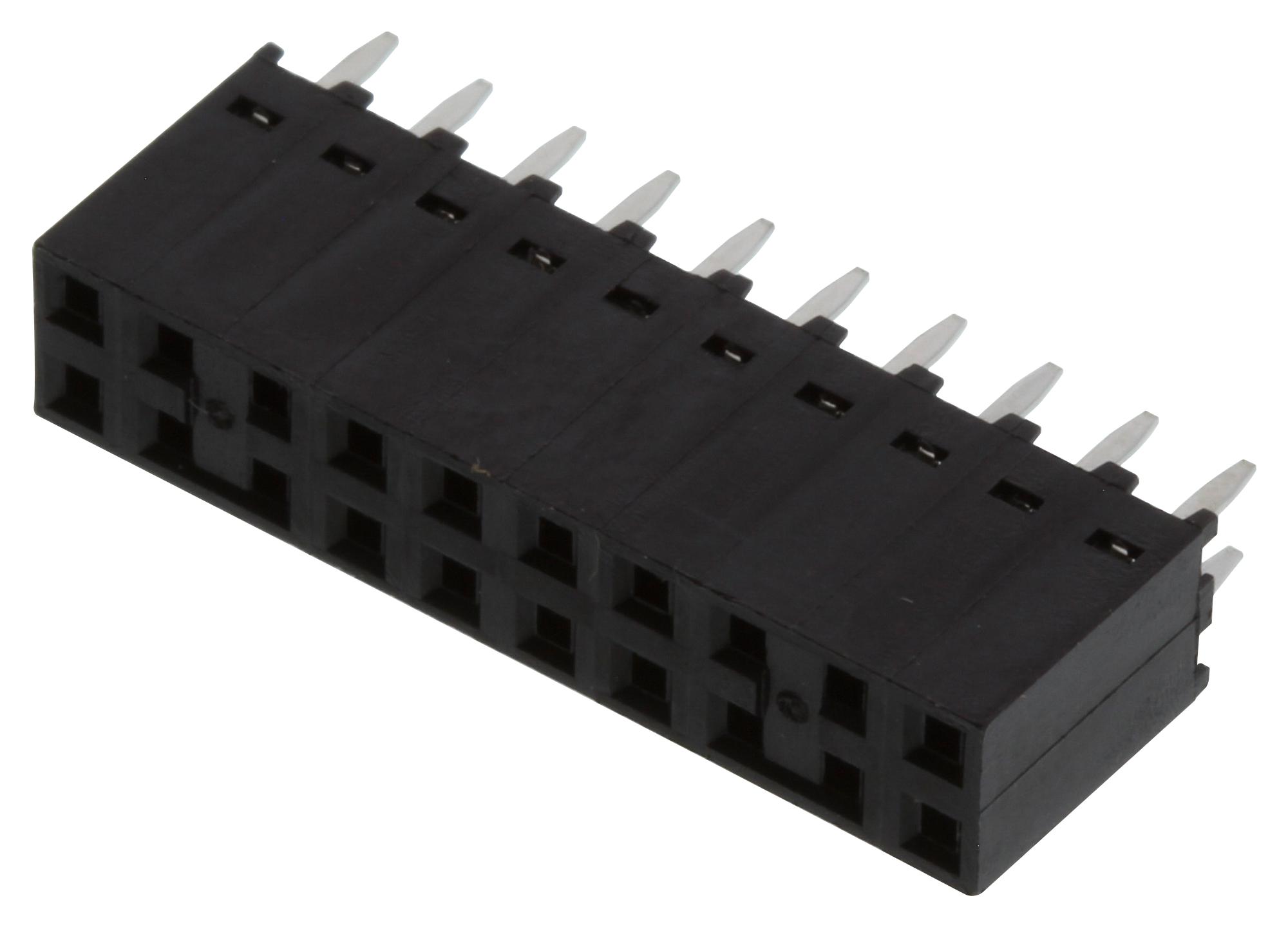

MOLEX 901512220 PCB Connector
The C-Grid III PC Board Connector is a robust, dual-row, vertical signal connector with 20 circuits and gold plating, designed for reliable board-to-board connections. It features a black, halogen-free resin housing with a 2.54mm pitch, operating within -55°C to +125°C temperature range. Made from phosphor bronze with gold and tin plating, it supports up to 3A per contact and a maximum voltage of 350V, ensuring durability and high-performance in demanding electronic applications. Suitable for automated soldering processes, it offers up to 100 mating cycles for long-term use.
MOLEX 901512220 PCB Connector Specifications:
- Number of Circuits: 20
- Row Configuration: Dual Row
- Orientation: Vertical
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Color: Black
- Pitch - Mating Interface: 2.54mm
- Lead Length: 2.90mm
- PCB Thickness - Recommended: 1.60mm
- Operating Temperature Range: -55°C to +125°C
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V
- Solder Process: Wave, Lead-Free
- Durability (Mating Cycles Max): 100
- Packaging: Tube
- Flammability: UL 94HB
- RoHS Compliant: Yes
Buy the Molex 0901512220 – Reliable High-Density PCB Connector for Industrial Applications
Secure your electronic projects with the Molex PCB Connector. Featuring 20 circuits, gold plating, and a 2.54mm pitch, this high-quality connector offers excellent signal integrity and durability. Its operating temperature range from -55°C to +125°C and support for 3A per contact ensure robust performance in demanding environments. Suitable for automated soldering processes, it is ideal for board-to-board connections in industrial, communication, and consumer electronics. Invest in proven reliability that simplifies assembly and provides long-term service life.
Buy Molex 0901512220 now and experience unmatched reliability and performance for your electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 901512220?
You can click on the BUY or RFQ button to purchase 901512220 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901512220?
You can download the 901512220 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901512220?
MOLEX
