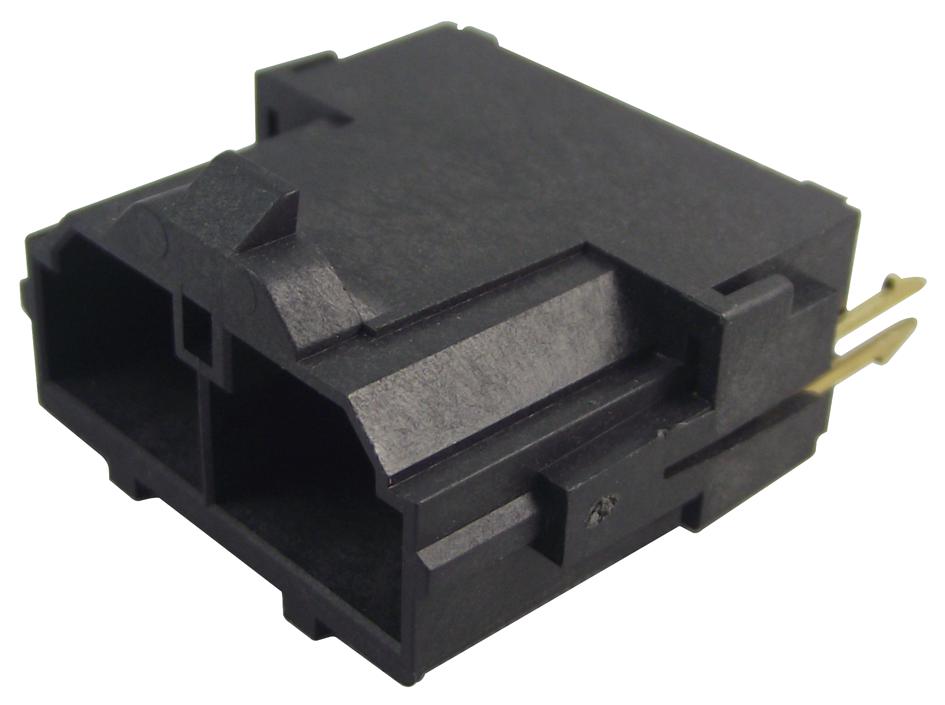

MOLEX 428193214 Power Connector
The Mini-Fit Sr. power connector is a 10.00mm pitch header designed for reliable wire-to-board connections. It features a single row, vertical orientation, and is suitable for applications requiring up to 50A current and 600V voltage. Made from durable high-temperature thermoplastic with silver over nickel plating, it supports up to 30 mating cycles. Its compact design includes a 3.50mm PC tail length, PCB retention, and is compliant with RoHS and other environmental standards, ensuring robust performance in demanding electrical and electronic systems.
MOLEX 428193214 Power Connector Specifications:
- Pitch: 10.00mm
- Number of Circuits: 3
- Color - Resin: Black
- Durability: 30 mating cycles
- Material - Metal: Brass
- Material - Plating Mating: Silver over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 7.404 g
- Orientation: Vertical
- PC Tail Length: 3.50mm
- PCB Thickness - Recommended: 1.57mm
- Current - Maximum per Contact: 50.0A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Packaging Type: Tray
- Shrouded: No
- Stackable: No
- PC Retention: Yes
- RoHS Compliance: Yes
- Replaces environmental regulations: EU RoHS, China RoHS, REACH SVHC
Buy the Molex Series Mini-Fit Sr. Power Connectors: 428193214
Elevate your electrical systems with Molex's Mini-Fit Sr. Power Connector, designed for high current and voltage requirements, with durable thermoplastic construction, reliable plating, and a compact vertical design. This 10mm pitch, three-circuit connector supports up to 50A and 600V, ensuring safe and efficient power distribution. Its RoHS compliance, high temperature tolerance, and multiple features make it ideal for industrial, automotive, and electronic applications where durability and performance are critical. Secure your connection needs with confidence today.
Buy Molex 428193214 now and experience unmatched reliability and performance in high-current power connection solutions.
