MOLEX 923151208 Ribbon Cable Assembly
The Picoflex ribbon cable assemblies are versatile, featuring polarized connectors with one-piece housings for secure connections and easy inventory management. They include dual-beam contacts, locking seat slots, and optional gold plating for enhanced durability in high-vibration environments. The assemblies accommodate various lengths and circuits, suitable for consumer electronics, industrial automation, medical devices, and renewable energy. The specific assembly with part number 923151208 connects Picoflex PF-50 headers, supports 250V, 1.2A, and is rated for at least 30 mating cycles, ensuring reliable performance across applications.
MOLEX 923151208 Ribbon Cable Assembly Specifications:
- Cable Length: 80.00mm
- Circuits: 12
- Gender: Female-Female
- Connector Type: Picoflex PF-50 IDT-to-Picoflex PF-50 IDT
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Wire Insulation Diameter: 1.27mm
- Wire Gauge: 28 AWG
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 1.2A
- Operating Temperature: -40°C to +105°C
- Locking Mechanism: Final seat slots
- Mates With: Picoflex PF50 header
- Number of Mating Cycles: Minimum 30
- Connector Housing: One-piece, polarized
- Support: Daisy chaining, insulation displacement termination
- Certification: UL, CSA
- RoHS Compliance: Yes

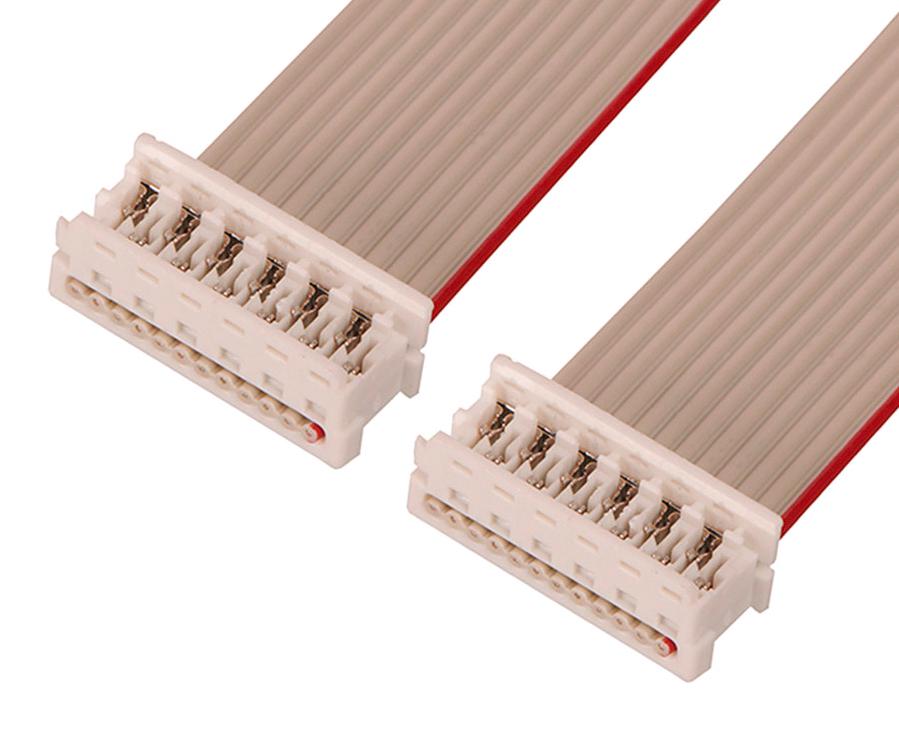

Buy the Buy Molex Picoflex Ribbon Cable Assembly Part Number 923151208 Online
Purchase the Molex ribbon cable assembly with part number 923151208 online today for dependable performance in automation, consumer electronics, and industrial applications. Featuring polarized connectors, dual-beam contacts, and a robust polyester shell, this assembly ensures secure, reliable electrical connections. With a maximum voltage of 250V, current of 1.2A, and rated for at least 30 mating cycles, it is suitable for various demanding environments. Easy to install, inspect, and maintain, it's your ideal solution for efficient project deployment.
Order your Molex Series92315 923151208 ribbon cable assembly today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 923151208?
You can click on the BUY or RFQ button to purchase 923151208 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151208?
You can download the 923151208 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151208?
MOLEX
