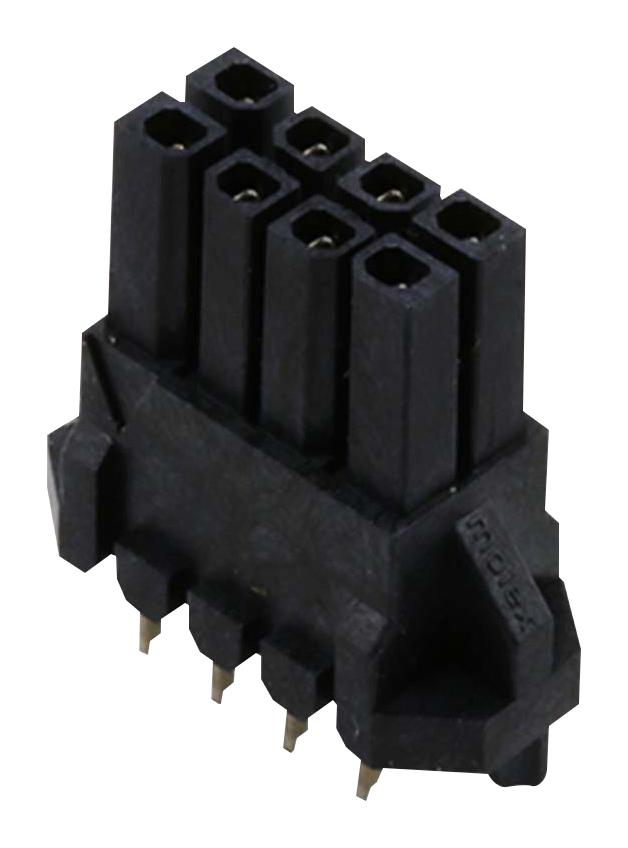

MOLEX 447690801 Micro-Fit BMI Receptacle Header
The MOLEX 44769-0801 Micro-Fit BMI receptacle header is a versatile component designed for secure and efficient electrical connections in various applications. This header, part of the Micro-Fit 3.0 Connector System family, offers 8 circuits and is characterized by its vertical orientation and robust construction. The black liquid crystal polymer (LCP) resin body provides excellent insulation and durability, while the tin plating on the phosphor bronze contacts ensures reliable signal transmission and power delivery. Its compatibility with a range of mating headers and housings makes it a flexible solution for board-to-board, power, and wire-to-board connections in industrial equipment, consumer electronics, and automotive systems. The header's design incorporates features like PCB retention and a polarized mating interface for ease of assembly and enhanced reliability.
MOLEX 447690801 Micro-Fit BMI Receptacle Header Specifications:
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Phosphor Bronze
- material_plating: Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.626
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.40
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- surface_mount_compatible_smc: No
- temperature_range_operating_c: -40 to +105
- termination_interface_style: Through Hole
- current_max_per_contact_a: 8.5
- voltage_max_v: 250
- duration_at_max_process_temp_seconds: 005
- lead_free_process_capability_wave_cycles: 001
- process_temperature_max_c: 260
