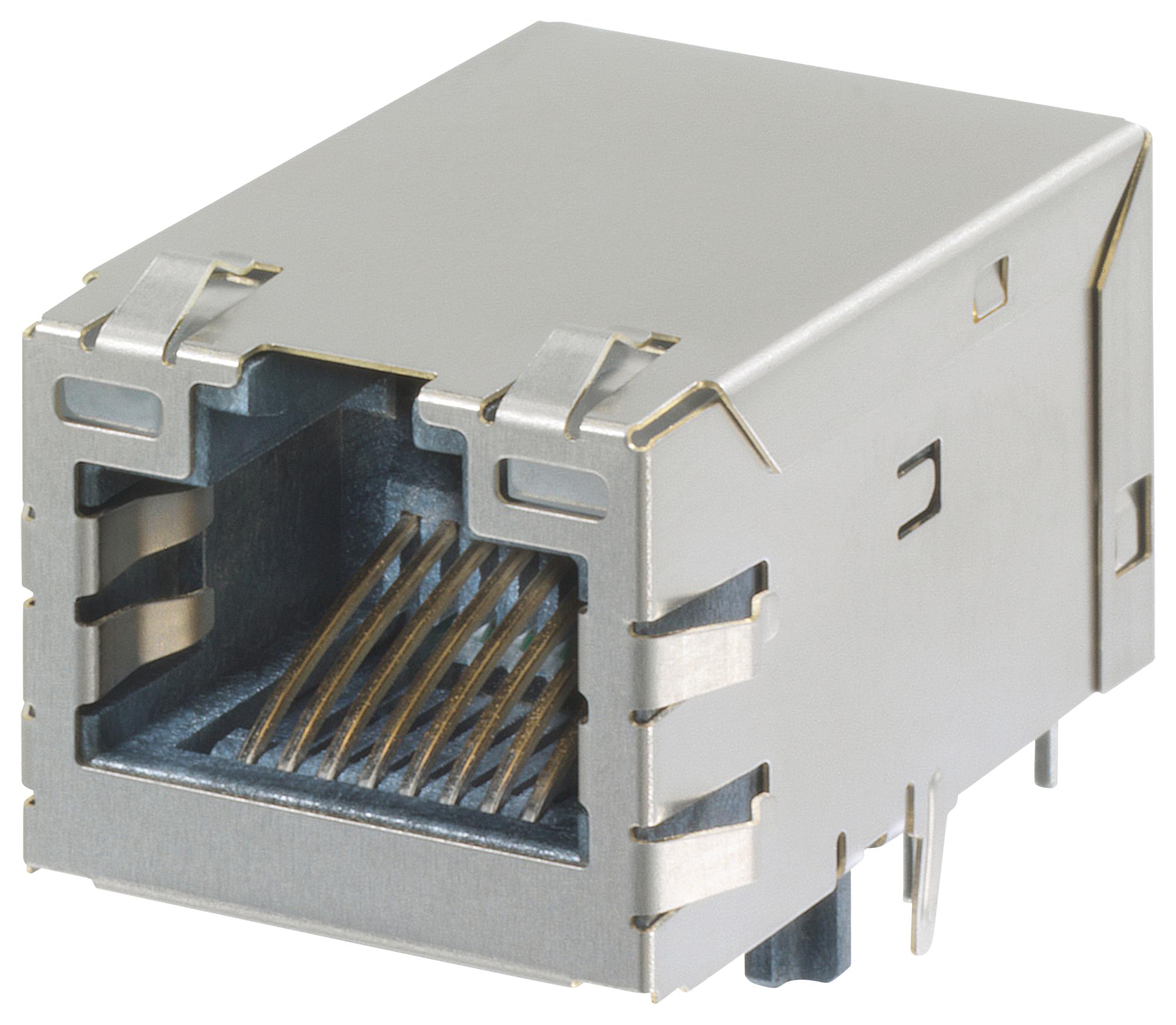

MOLEX 937555226 Ethernet Connector
The MXMag Fast Ethernet RJ45 connector is a magnetic single-port modular jack designed for industrial applications. It features a right-angle, inverted profile with shield tabs, green-yellow LEDs, and a 25.40mm depth. Built with durable materials, it supports Power over Ethernet (PoE) and offers up to 2500 mating cycles. The connector operates within a temperature range of -40°C to +85°C, with gold-plated contacts for reliable connectivity. Suitable for PCB mounting with through-hole termination and compliant with RoHS standards for environmentally conscious manufacturing.
MOLEX 937555226 Ethernet Connector Specifications:
- Series: 93755
- Component Type: Modular Jack
- Depth: 25.40mm
- Color - Resin: Black
- Durability: 2500 mating cycles
- Pin Configuration: 8/8
- Orientation: Right Angle (Side Entry)
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +85°C
- Terminations: Through Hole
- Voltage - Maximum: 125V
- Current - Maximum per Contact: 0.5A
- Shielded: Yes
- Surface Mount Compatible: No
- Panel Mount: Yes
- Mates With: IEC 60603 / TIA-1096-A
Buy the Molex 093755226 – Reliable Ethernet Jack for Industrial Applications
Order the Molex Ethernet connector online today to ensure a robust and secure network connection in your industrial environment. This magnetic RJ45 jack features a right-angle design with shield tabs, LEDs for status indication, and is built to withstand harsh conditions with a temperature range up to 85°C. Its durable construction supports up to 2500 mating cycles and is RoHS compliant, making it ideal for applications requiring high reliability and environmental safety. Purchase now to enhance your industrial Ethernet solutions with ease and confidence.
Get Molex 093755226 today—built for industrial robustness and reliable network connections with shielded, durable design.
