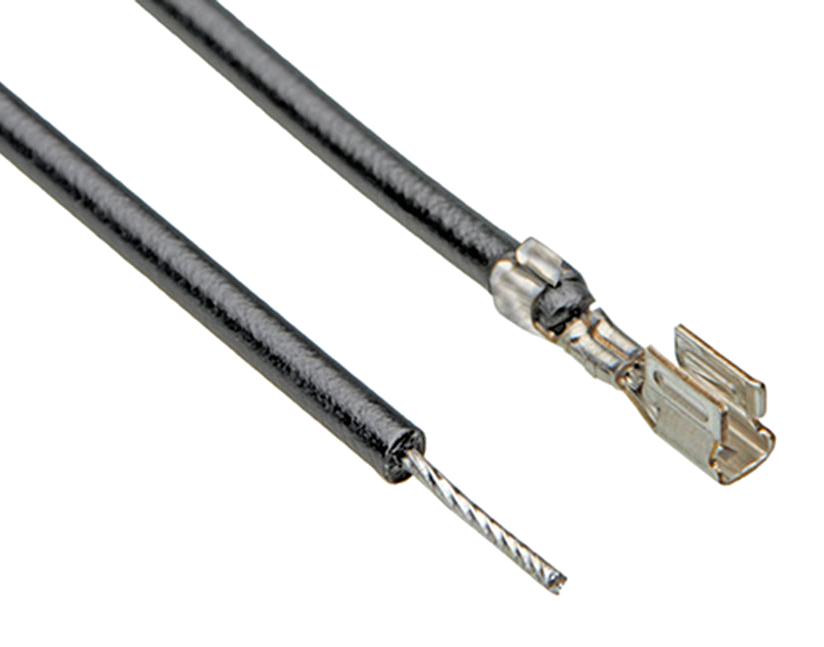

MOLEX 2175111112 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-1112 is a pre-crimped lead assembly, part of the L1NK 250 series. This component provides a convenient and reliable connection solution, eliminating the need for on-site crimping. It's ideal for applications requiring a pre-terminated connection, reducing assembly time and ensuring consistent quality. The tin plating on both mating and termination surfaces enhances conductivity and corrosion resistance, making it suitable for various industrial and commercial applications.
MOLEX 2175111112 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 217511
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 0.843/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119567
- sales_drawing: 2175112111-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
