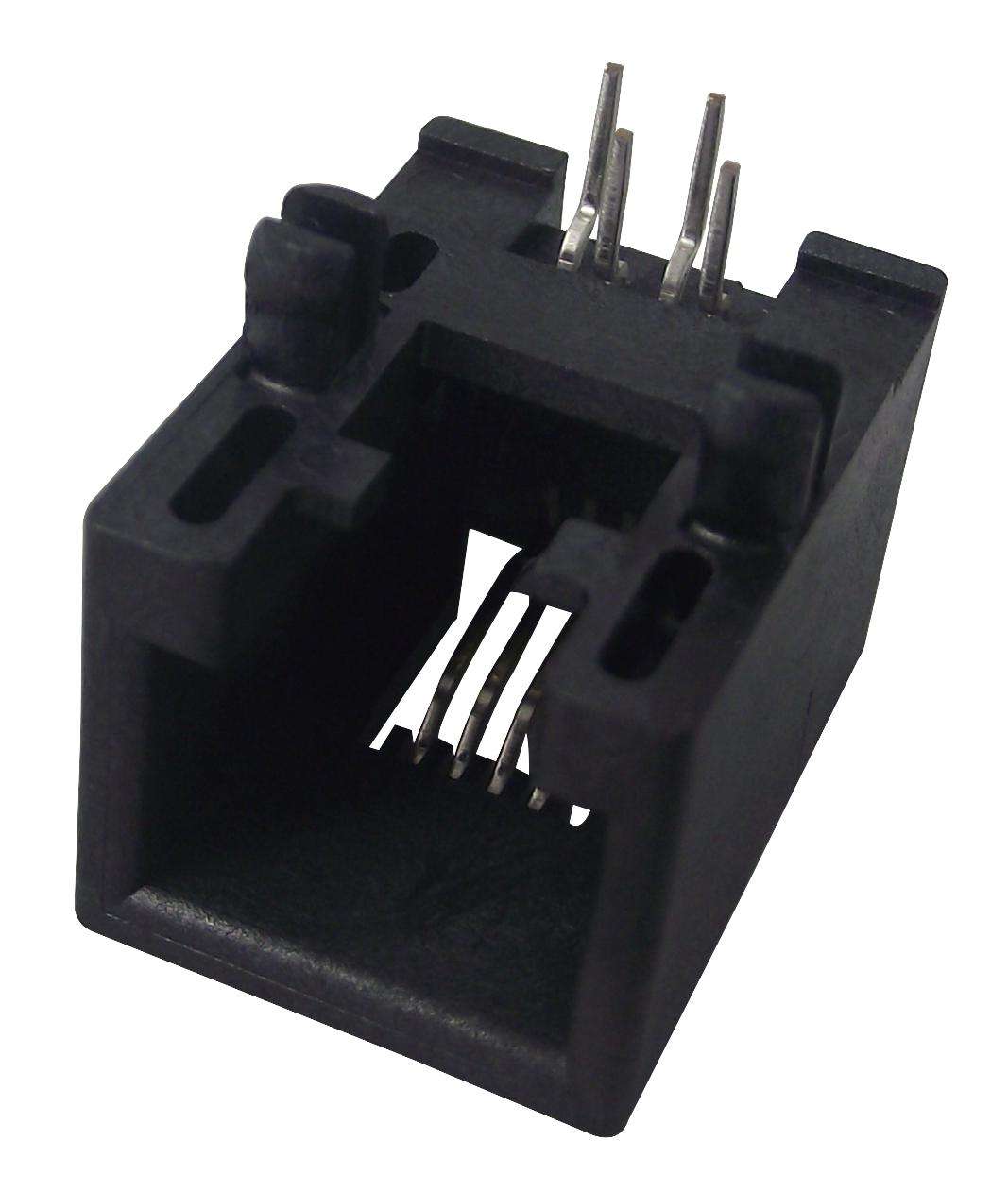

MOLEX 955012641 Modular Jack
The modular jack is a right-angle, through-hole connector designed for low-profile applications, supporting Power over Ethernet. Made from high-temperature thermoplastic with gold over palladium nickel plating, it features a 6/4 port configuration, 1500mA current capacity, and voltage up to 125V DC. It is RoHS compliant, UL certified, and rated for up to 2500 mating cycles. Suitable for networking and industrial automation, it ensures durability with a mating height of 11.50mm, operating from -40°C to +85°C, and features a tray packaging for easy installation.
MOLEX 955012641 Modular Jack Specifications:
- Series: 95501
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Ports: 3
- Jack Height: 11.50mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 2500
- Flammability: 94V-0
- Inverted / Top Latch: No
- Temperature Range - Operating: -40°C to +85°C
- Waterproof / Dustproof: No
- Wire/Cable Type: N/A
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max: 260°C
- Termination Interface: Style: Through Hole
- Voltage - Maximum: 125V DC
- Current - Maximum per Contact: 1.5A
Buy the Buy Molex 95501 Modular Jack Low-Profile PoE Connector Part Number 955012641
Order the Molex 95501 modular jack online today and enjoy quick, secure delivery. This reliable, low-profile connector supports Power over Ethernet and ensures durable, high-quality connections in industrial and networking settings. Its robust design withstands up to 2500 mating cycles and operates efficiently from -40°C to +85°C. With UL certification and RoHS compliance, it is an ideal choice for demanding environments requiring long-lasting, dependable connectivity solutions, delivering outstanding value and performance in every application.
Buy Molex 95501 now and experience unmatched reliability, durable connections, and high-performance networking suitable for industrial automation.
Frequently Asked Questions
Where can I buy MOLEX 955012641?
You can click on the BUY or RFQ button to purchase 955012641 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 955012641?
You can download the 955012641 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 955012641?
MOLEX
