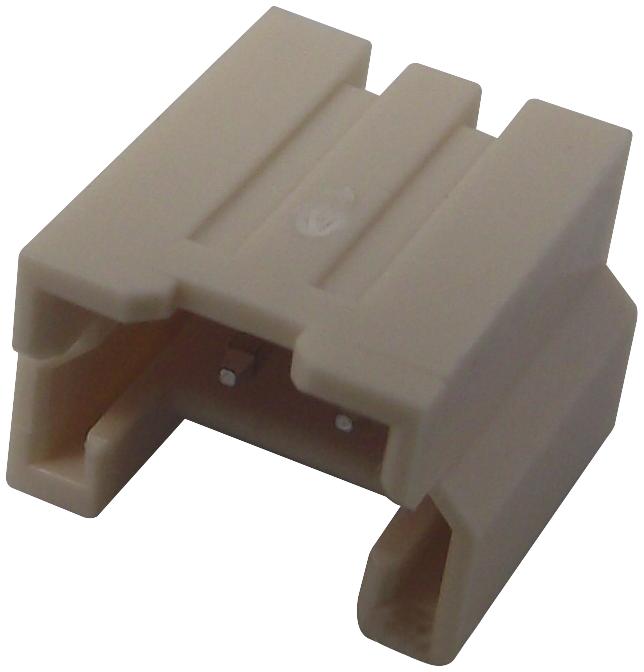

MOLEX 353620250 Wire-to-Board Connector
The Sherlock Connector System features a 2.00 mm pitch wire-to-board header with a positive lock, designed for reliable electrical connections in industrial and electronic applications. This vertical, natural-colored connector supports up to two circuits, with kinked PC tails for secure mounting. It is compliant with RoHS and UL certifications, made from durable nylon, and rated for operating temperatures from -40°C to +105°C. The connector provides high mating cycle durability and is suitable for automation and control systems requiring secure, stable connections.
MOLEX 353620250 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.00 mm
- Number of Circuits (Loaded): 2
- Maximum Circuits: 2
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability (mating cycles max): 30
- Operating Temperature Range: -40°C to +105°C
- Voltage - Maximum: 125V
- Current - Maximum per Contact: 2.0A
- Height (mated): 8.50 mm
- PC Tail Length: 3.30 mm
- Packaging: Bag
- Through Hole: Yes
- RoHS Compliant: Yes
- UL and CSA Certifications: Yes
Buy the Molex 353620250 – Reliable Connectors for Industrial Applications
Purchase the Molex 353620250 wire-to-board connector online today for dependable, high-quality electrical connections suitable for industrial automation, control systems, and electronic devices. This connector features a 2.00 mm pitch, positive lock, and maximum durability to withstand up to 30 mating cycles. Crafted from flame-retardant nylon and plated with tin, it ensures corrosion resistance and optimal electrical conductivity. Operating efficiently from -40°C to +105°C, it supports up to 2A per circuit and 125V, making it ideal for various demanding industrial and electronic applications.
Get Molex 353620250 today—built for precision and long-lasting durability in industrial wiring systems.
