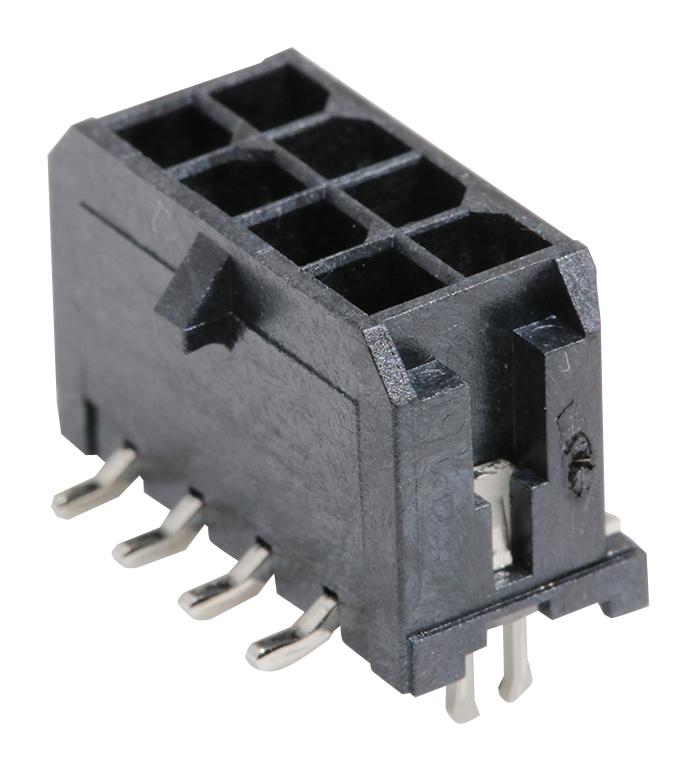

MOLEX 430450815 Micro-Fit Power Header
This Micro-Fit 3.0 vertical header offers a reliable, high-temperature, compact power and wire-to-board connector system with a 3.00mm pitch, dual row, and 8 circuits. Constructed from flame-retardant thermoplastic and plated with tin for optimal electrical contact, it is UL and CSA certified, RoHS compliant, and glow-wire capable to meet safety standards. Designed for high durability with a maximum of 30 mating cycles, it supports PCB retention, suitable for soldering or press-fit applications, and operates in temperatures from -40°C to +105°C, making it ideal for various electronic device assemblies.
MOLEX 430450815 Micro-Fit Power Header Specifications:
- Number of Circuits: 8
- Pitch: 3.00mm
- Color - Resin: Black
- Durability: 30 mating cycles
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Process Temperature Max: 260°C (Reflow)
- Packaging: Embossed Tape on Reel
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatible: Yes
- Polarized to PCB: Yes
- Shrouded: No
- Stackable: No
Buy the Buy Molex Micro-Fit 3.0 Connector Part Number 0430450815 Online
Purchase the Molex Micro-Fit Power Header with 8 circuits, 3.00mm pitch, and high-temperature thermoplastic housing online today. Designed for power and wire-to-board connections, it offers durability up to 30 mating cycles and is RoHS compliant. Its UL and CSA certifications ensure safety and reliability, making it suitable for a wide range of electronic applications. Enabled for PCB retention and various termination methods, this connector provides a secure, efficient, and high-performance solution for your device assembly needs.
Buy Molex 0430450815 now and experience unmatched reliability and high-temperature power connection performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 430450815?
You can click on the BUY or RFQ button to purchase 430450815 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450815?
You can download the 430450815 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450815?
MOLEX
