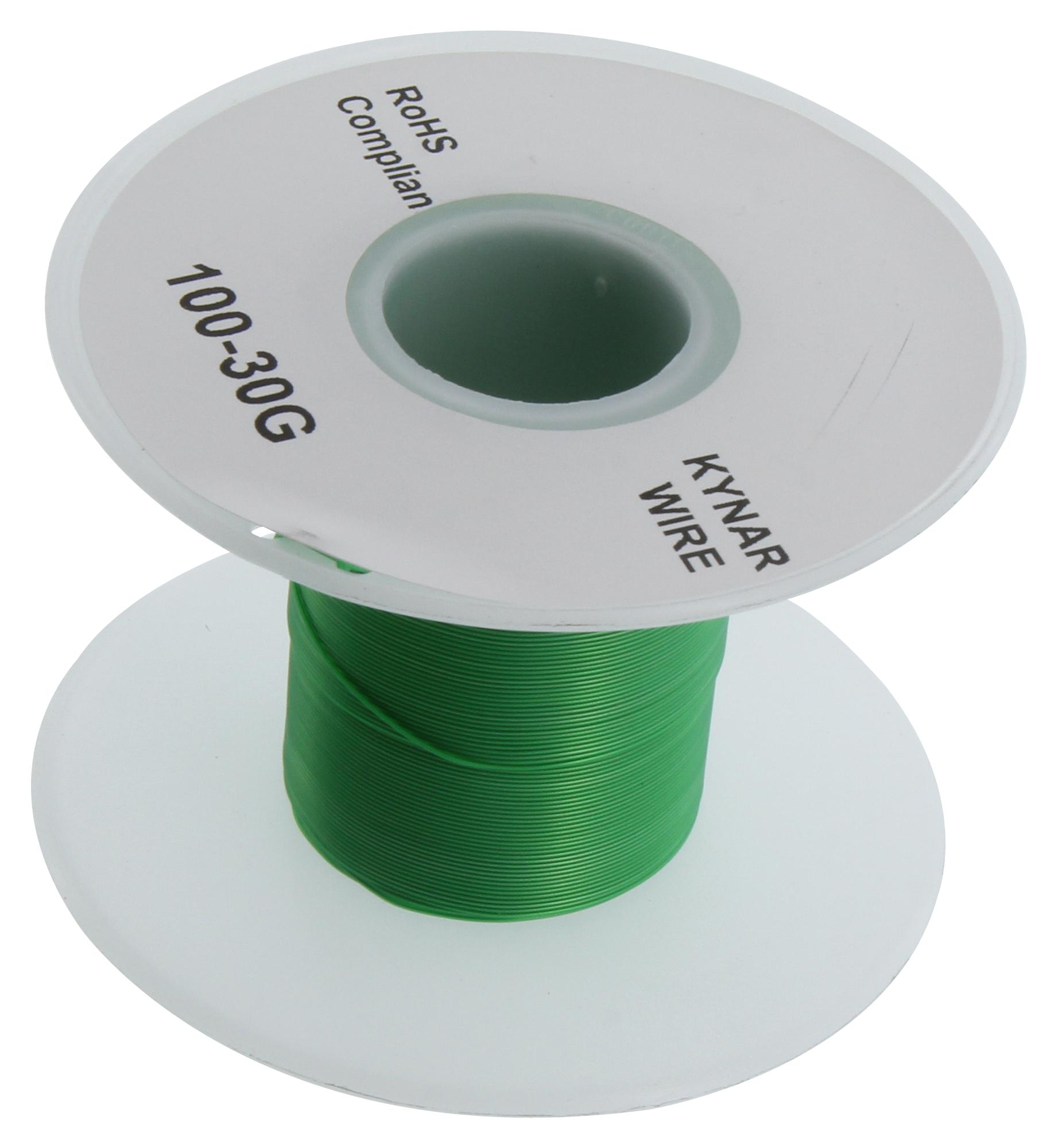

MULTICOMP-PRO 10030G Wire Wrapping Wire
The 100-30G is a 0.25mm² wrapping wire with an oxygen-free, high-conductivity silver-plated copper conductor insulated using Kynar 460 material. It has a DC resistance of 106 ohms per meter at 20°C and withstands up to 2000 VAC RMS in spark testing. Designed for operating within -60°C to +105°C, it’s ideal for industrial, electronic, and maintenance applications. The wire's durable insulation and precise specifications make it suitable for wrapping, cutting, and strip applications in various technical environments, ensuring long-lasting performance and safety.
MULTICOMP-PRO 10030G Wire Wrapping Wire Specifications:
- Conductor Material: Silver-plated oxygen-free copper
- Conductor Size: 30 AWG (0.25 mm²)
- Maximum Circular Mil Area: 198
- D.C.R: 106 ohms per meter at 20°C
- Elongation: 20% before insulation
- Insulation Material: Kynar 460
- Insulation Wall Thickness: Minimum 0.004 inches, at least 0.003 inches anywhere
- Insulation Diameter: 0.0195 inches +0.001 inches
- Spark Test Voltage: 2000 V AC RMS
- Operating Temperature Range: -60°C to +105°C
- Voltage Rating: 300 V
- Weight per Meter: 0.0303 lbs (conductor), 0.168 lbs (insulation), total 0.47 lbs
- Color Options: As specified (Green, Blue, Red, Black, White, Orange, Yellow, Violet)
Buy the Buy DrO-POWER Wire Wrapping Part Number 10030G Online
Purchase the DrO-POWER 100-30G high-conductivity silver-plated copper wire online now to ensure reliable performance in your electronic, industrial, or maintenance projects. With its Kynar 460 insulation rated for temperatures from -60°C to +105°C and a voltage rating of 300 V, this wire is perfect for wrapping, cutting, and strip applications. Its excellent spark resistance and long-lasting durability make it an essential component for professionals seeking quality and precision in wire handling and assembly, available with fast, easy online ordering.
Get DrO-POWER 100-30G wire today—designed for precise wrapping and durable insulation in industrial and electronic projects.
