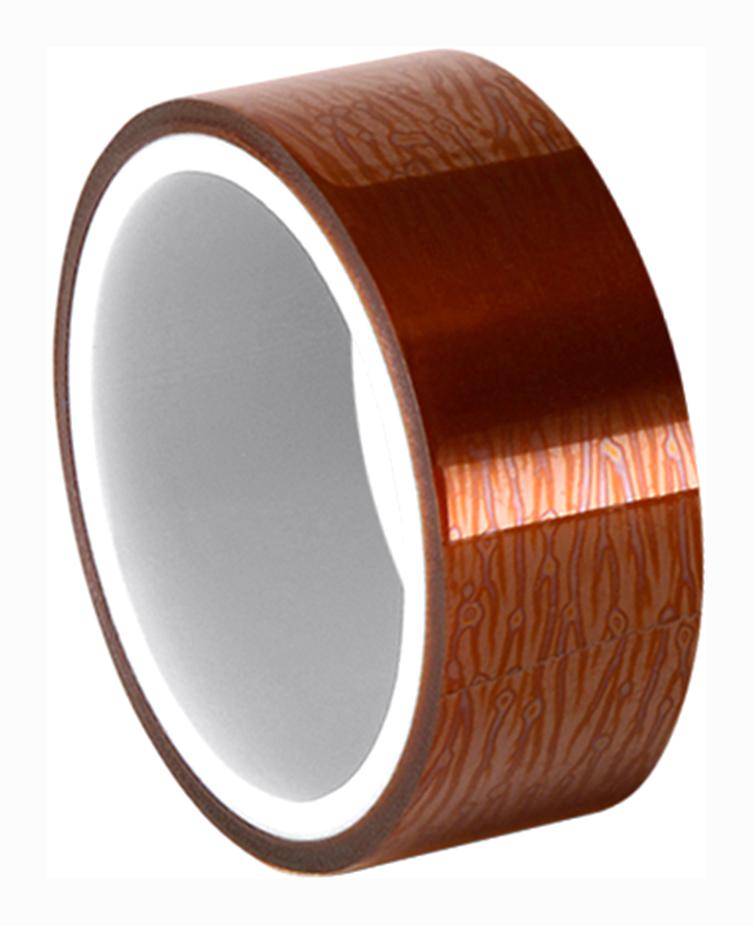

MULTICOMP PRO MP700375 Polyimide Silicone Tape
This high-temperature masking tape features a polyimide film and silicone adhesive, designed for protection during wave soldering, PCB fabrication, and electrical insulation. It is ideal for masking gold fingers and curing surfaces exposed to elevated temperatures up to 500°F. With excellent electrical insulation, conformability to uneven surfaces, and clean removal without residue, it meets UL-94V0 flammability standards. The tape's polyimide film is 2.0 mils thick, with total thickness of 3.5 mils, making it suitable for electrical, electronic, and manufacturing applications requiring high heat resistance and electrical insulation.
MULTICOMP PRO MP700375 Polyimide Silicone Tape Specifications:
- Total Thickness: 3.5 mils
- Film Thickness: 2.0 mils
- Adhesive Thickness: 1.5 mils
- Adhesive Color: Amber
- Operating Temperature Range: -40°F to 500°F
- Dielectric Strength: 11,000 volts
- Elongation: 60%
- Adhesion to Steel: 22 oz/inch
- Break Strength: 50 lbs/in
- Flammability: UL 94V0
- Application: High-temperature masking, electrical insulation, PCB protection
- Conformability: Thin and flexible for masking uneven surfaces
- Storage Life: One year when stored below 76°F in dry conditions
Buy the Multicomp Series High-Temperature Polyimide Silicone Tape: MP700375
Order the Polyimide Silicone Tape MP700375 today online and ensure superior high-temperature masking, electrical insulation, and clean removal in PCB manufacturing and electronics assembly. Perfect for protecting gold fingers during soldering, it withstands temperatures up to 500°F, conforming easily to uneven surfaces. Its excellent dielectric strength and conformable design make it essential for electronics professionals. Buy online now to get fast delivery, trusted quality, and the reliability needed for high-performance electronic and industrial applications.
Buy Multicomp series MP700375 high-temperature polyimide silicone tape now and experience reliable PCB protection and electrical insulation in demanding environments.
