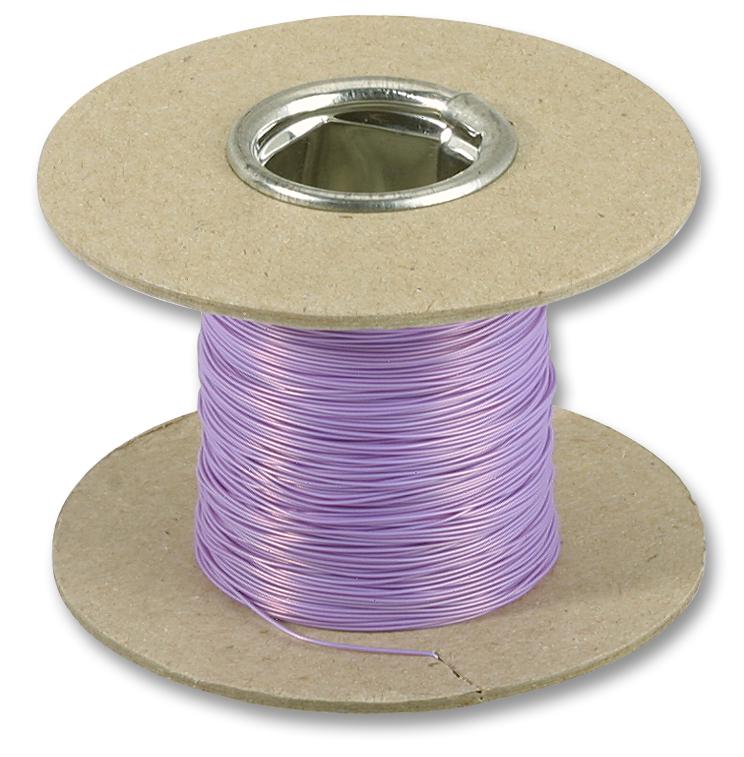

MULTICOMP-PRO 10030V Wire Wrapping Wire
High-quality wire wrapping wire made from silver-plated oxygen-free copper, insulated with durable Kynar, rated for operating temperatures up to 105°C. Designed for precise wrap, cut, and strip applications, these 30 AWG solid conductors provide excellent conductivity with a minimum circular mil area of 198. The insulation features a 0.004-inch wall thickness and a diameter of 0.0195 inches, with a voltage rating of 300 V. Suitable for electronic assembly, wiring harnesses, and insulation-sensitive applications, ensuring long-lasting, reliable electrical connections in demanding environments.
MULTICOMP-PRO 10030V Wire Wrapping Wire Specifications:
- Conductor Size: 30 AWG, solid
- Conductor Material: Silver plated oxygen free copper, ASTM-B 170 grade
- Plating Thickness: Minimum 40 micro inches per ASTM-B-298
- Minimum Circular Mil Area: 198
- D.C.R: Max 106 2/M at 20°C
- Elongation: 20% before insulation
- Weight: 0.0303 lbs per meter
- Minimum Diameter: 0.0099 inches
- Insulation Material: Kynar 460
- Insulation Wall Thickness: Minimum 0.004 inches
- Insulation Diameter: 0.0195 inches +0.001 inches
- Voltage Rating: 300 V
- Operating Temperature: -60°C to +105°C
- Spark Test Voltage: 2,000 V ac RMS
Buy the Buy DrO-POWER Wire Wrapping Wires Part Number 10030V Online
Discover premium wire wrapping wires crafted with silver-plated oxygen-free copper and Kynar insulation, rated for 105°C. Perfect for electronic wiring, insulation-sensitive, and wrap applications. These 30 AWG solid conductors offer high conductivity, minimal resistance, and long-lasting durability. With a voltage rating of 300 V and a diameter of 0.0195 inches, they are suitable for precise and reliable electrical connections in demanding environments. Shop online now to ensure your projects benefit from top-quality materials for optimal performance and longevity.
Get DrO-POWER 10030V today—designed for high reliability, excellent conductivity, and insulation durability for professional wiring.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 10030V?
You can click on the BUY or RFQ button to purchase 10030V from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 10030V?
You can download the 10030V datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 10030V?
MULTICOMP-PRO
