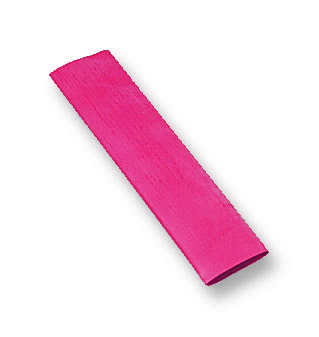

MULTICOMP PRO 13668 Heat Shrink Tubing
This halogen-free polyolefin heat shrink tubing offers reliable insulation and protection for electrical components, with excellent mechanical and electrical performance. Designed for applications requiring quick shrinkage at low temperatures, it withstands temperatures from -55°C to +125°C, with a minimum shrink temperature of 70°C and full recovery at 120°C. Its 2:1 shrink ratio, flexible nature, and compliance with industry standards like Sony-SS-00259 make it ideal for wiring, cable insulation, and electrical protection, ensuring durability and safety in demanding environments.
MULTICOMP PRO 13668 Heat Shrink Tubing Specifications:
- Material: Modified radiation cross-linked polyolefin
- Flammability: FMVSS302 pass
- Temperature Rating: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Tensile Strength: 210.4 MPa (ASTM D2671)
- Ultimate Elongation: 2200% (ASTM D2671)
- Dielectric Strength: 215 kV/mm (ASTM D150)
- Volume Resistivity: 21 x 10^4 Ω·cm (ASTM D2671)
- Longitudinal Shrinkage: 45% (UL 224)
- Operating Temperature: -55°C to +125°C
- Dimensions: Internal diameter ranges from 1.6mm to 50.8mm with wall thickness from 0.2mm to 0.5mm, post-recovery diameter from 0.65mm to 12.5mm, wall thickness from 0.36mm to 0.9mm
- Colors: Black, Red, Yellow, White, Blue, Brown
- Standards: Meets Sony-SS-00259, RoHS compliant
Buy the Farnell 13668 U–Reliable Insulation Heat Shrink for Industrial Applications
Order Farnell heat shrink tubing online now for reliable electrical insulation and protection in industrial environments. Its flexible, halogen-free polyolefin material offers easy application with 2:1 shrink ratio, ensuring quick shrinking at low temperatures. Designed to withstand extreme temperature ranges from -55°C to +125°C, it meets strict industry standards like Sony-SS-00259 and FMVSS302. Available in multiple colors and sizes, it guarantees long-lasting performance, mechanical strength, and electrical safety, making it ideal for wiring, cable insulation, and component protection across various demanding applications.
Get Farnell 13668 today—built for precision and long-lasting durability in electrical insulation and cable protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 13668?
You can click on the BUY or RFQ button to purchase 13668 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 13668?
You can download the 13668 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 13668?
MULTICOMP PRO
