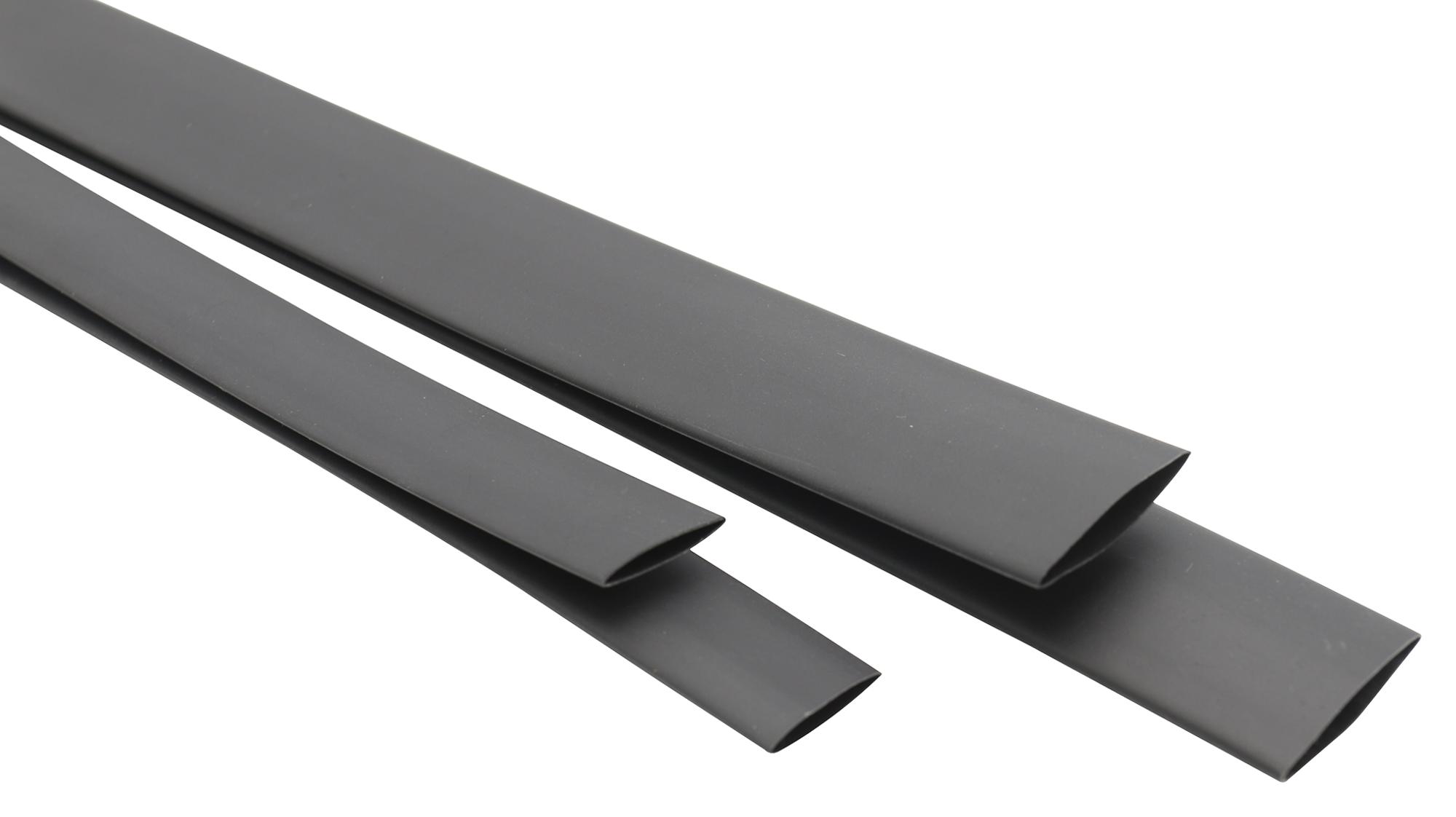

MULTICOMP PRO 13676 Heat Shrink Tubing
The heat shrink tubing is manufactured with modified radiation cross-linked polyolefin. The halogen-free formulation ensures flexibility and low-temperature shrinkage, making it ideal for protecting temperature-sensitive components like PVC-jacketed wires and cables. It offers excellent mechanical and electrical performance, including dielectric strength of 215 kV/mm, tensile strength exceeding 210 MPa, and elongation of 2200%. Suitable for various industrial applications, it meets RoHS standards, features multiple color options, and has a shrink ratio of 2:1, with a wide range of sizes from 1/16 inch to 2 inches.
MULTICOMP PRO 13676 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colors: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa ASTM D2671
- Ultimate Elongation: 2200% ASTM D2671
- Volume Resistivity: 21x10^10 ohm-cm ASTM D2671
- Dielectric Strength: 215 kV/mm ASTM D150
- Longitudinal Shrinkage: 15% UL 224
- Heat Aging Tensile Strength: 27.3 MPa at 158°C after 168 hours
- Heat Shock Resistance: 250°C for 4 hours, no cracking or dripping
- Product Dimensions: Inner diameter from 1.6 mm to 50.8 mm; Wall thickness from 0.2 mm to 0.5 mm after recovery
- Other properties: UL 224 Pass for copper stability and corrosion resistance, FMVSS302 Flammability pass
Buy the Pro-Power Series Heat Shrink Tubing: 13676
Order Pro-Power heat shrink tubing now to ensure optimal protection and insulation for your electrical wiring projects. This flexible, halogen-free polyolefin tubing shrinks uniformly at low temperatures, providing a tight and reliable fit around wires and cables. Its excellent electrical and mechanical properties meet stringent standards like RoHS, ensuring safety and compliance. Available in multiple sizes and colors, it is suitable for industrial and electronic applications requiring quick, effective insulation and weather resistance. Purchase online to enjoy fast delivery and quality assurance.
Get Pro-Power heat shrink tubing today—built for flexibility, durability, and reliable insulation for your critical wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 13676?
You can click on the BUY or RFQ button to purchase 13676 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 13676?
You can download the 13676 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 13676?
MULTICOMP PRO
