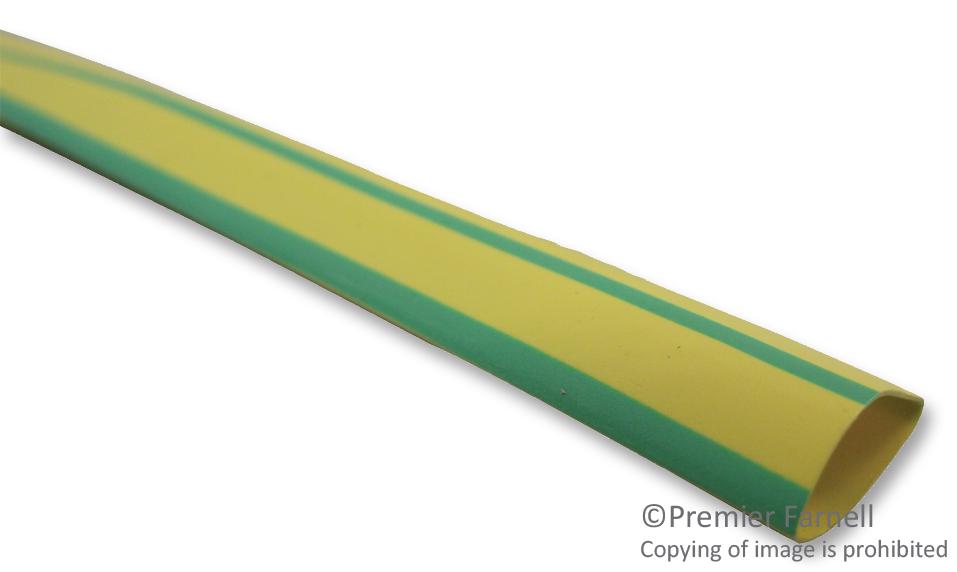

MULTICOMP PRO 15095 Heat Shrink Tubing
The Green/Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing is designed for wire identification, especially ground wires. It is flexible, flame-retardant, and features permanent colour properties for easy installation. Suitable for light-duty harnessing, the tubing operates within -55°C to +125°C, with a minimum shrink temperature of 70°C and full recovery at 120°C. It has a shrink ratio of 2:1, UL224 VW-1, CSA22.2 No.198.1 approvals, and exhibits excellent electrical insulation and stability, ideal for electrical and electronic applications.
MULTICOMP PRO 15095 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Shrink Temperature: Min. 70°C, Full recovery at 120°C
- Shrink Ratio: 2:1
- Material: Polyolefin
- Flammability: UL224 VW-1, CSA22.2 No.198.1
- Tensile Strength: 10.4 MPa (min)
- Ultimate Elongation: 200% (min)
- Dielectric Strength: 15 kv/mm (min)
- Volume Resistivity: 1x10^14 ohm-cm (min)
- Wall Thickness: 0.28 to 0.9 mm depending on size
- Sizes: Ranges from 1.6 mm to 50.8 mm diameter after recovery
- Reel Lengths: 5 m, 25 m, 50 m, 100 m options available
Buy the Green/Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing: 15095
Order the Green Yellow Flame-Retardant Polyolefin Heat Shrink Tubing online today. Designed for wire identification, this flexible, flame-retardant tubing boasts a 2:1 shrink ratio, operates from -55°C to +125°C, and features UL and CSA approvals for electrical safety. Available in various sizes up to 50.8 mm diameter, in 5 to 100-meter reels. Ideal for electrical harnessing, grounding, and wire insulation, ensuring secure, long-lasting connections with easy installation and permanent color coding.
Get Green/Yellow Striped Flame-Retardant Polyolefin Heat Shrink Tubing 15095 today—built for durable wire insulation and easy ground wire identification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15095?
You can click on the BUY or RFQ button to purchase 15095 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15095?
You can download the 15095 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15095?
MULTICOMP PRO
