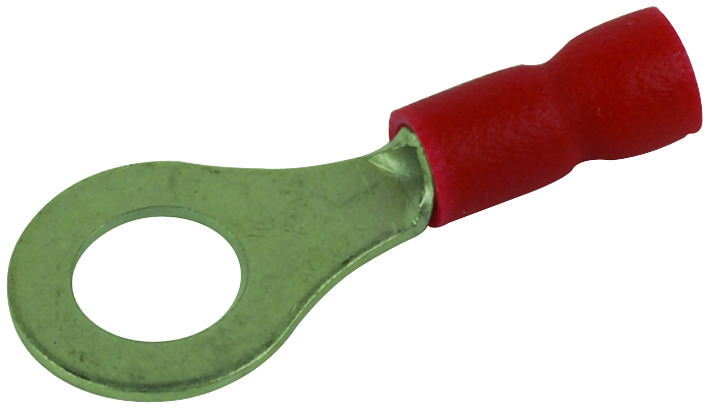

MULTICOMP PRO MC29554 Ring Terminal
This ring terminal is designed for secure electrical connections with a wire range of 22 to 16 AWG and a thickness of 0.75mm. Made from tin-plated copper, it features a vinyl insulation in red for easy identification. The terminal is rated for a maximum current of 18 Amps and a maximum voltage of 600 Volts. It includes copper sleeves on the barrel and double crimp capability for reliable attachment. Compact and durable, it suits various electrical assembly applications requiring robust and insulated terminal connections.
MULTICOMP PRO MC29554 Ring Terminal Specifications:
- Max. Electric Current: 18 Amps
- Max. Electrical Rating: 600 Volts
- Insulation Material: Vinyl
- Insulation Colour: Red
- Terminal Material: Copper
- Wire Range: 22, 20, 18, 16 AWG
- Double Crimp: Yes
- Terminal Surface Treatment: Tin plated
- Thickness: 0.75mm
- Dimensions: Not specified in mm, suitable for 22-16 AWG wires
- Features: Copper sleeve on barrel, double crimp capable
Buy the Buy multicomp Ring Terminal Part Number MC29554 Online
Secure essential electrical connections with the multicomp Ring Terminal, capable of handling 22 to 16 AWG wires with a 0.75mm thickness. Made from high-quality copper and tin-plated for corrosion resistance, it provides a reliable and long-lasting connection. Rated for 600 Volts and 18 Amps, it features vinyl insulation in red for easy identification. The terminal includes copper sleeves on the barrel and supports double crimping for added safety and stability. Perfect for electrical assemblies needing durability and secure termination, available to purchase online today.
Get multicomp MC29554 today—designed for secure and reliable electrical connections with durable tin-plated copper and insulation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC29554?
You can click on the BUY or RFQ button to purchase MC29554 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC29554?
You can download the MC29554 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC29554?
MULTICOMP PRO
