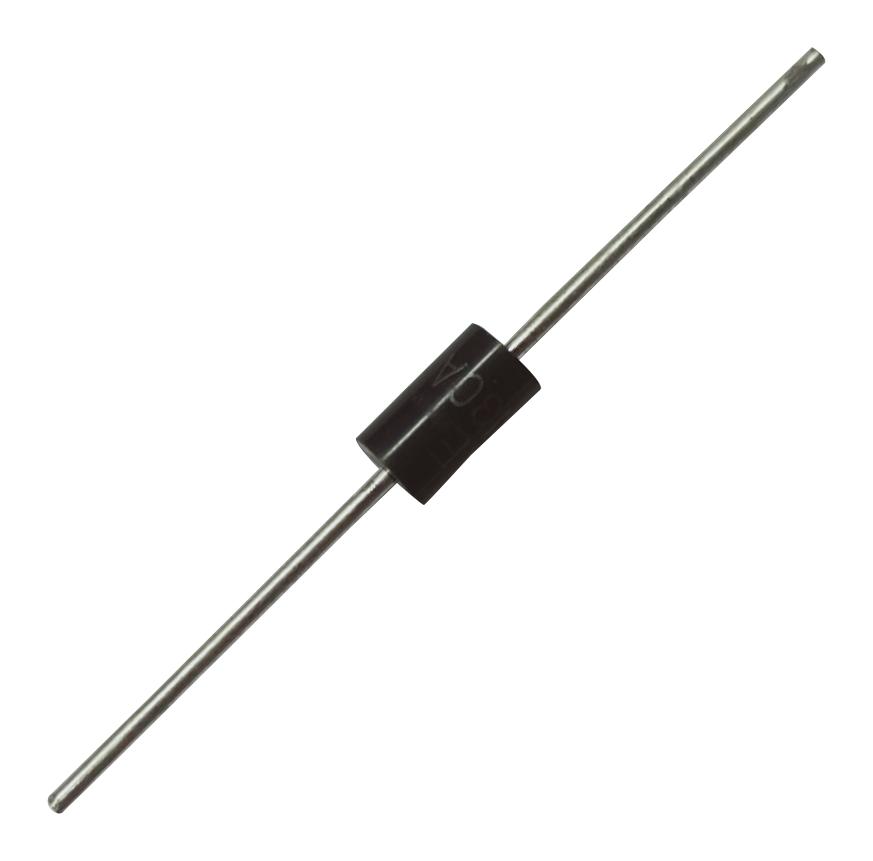

MULTICOMP PRO 15KE22A Transient Voltage Suppressor Diode
The 15KE22A is a unidirectional transient voltage suppressor diode designed for protecting electronic circuits against voltage spikes. Featuring glass passivate chips, low leakage current, and excellent clamping capabilities, this diode is suitable for both AC and DC applications. It is built with UL-recognized plastic material (UL 94V-0) and offers robust performance with high peak power dissipation of 1500 watts, a maximum repetitive peak reverse voltage of 209V, and an operating temperature range from -55°C to +150°C. Its compact design ensures reliable surge protection in various industrial and electronic environments.
MULTICOMP PRO 15KE22A Transient Voltage Suppressor Diode Specifications:
- Peak Power Dissipation: 1500 Watts at 25°C
- Peak Forward Surge Current: 200 A for 8.3 ms (Single Half Sine-Wave)
- Maximum Repetitive Peak Reverse Voltage: 209 V
- Maximum Clamping Peak Voltage: 231 V
- Maximum Standoff Voltage: 188 V
- Storage Temperature Range: -55°C to +175°C
- Operating Temperature Range: -55°C to +150°C
- Case Material: Molded Plastic UL 94V-0
- Lead Lengths: 0.375 inches (9.5 mm)
- Weight: 21 g
- Dimensions: Length approximately 0.378 inches (9.6 mm), Width approximately 0.335 inches (8.5 mm), Height approximately 0.108 inches (2.75 mm)
Buy the Multicomp Pro 15KE22A – Reliable TVS Diode for Industrial Applications
Protect your electronic installations with the high-performance 15KE22A transient voltage suppressor diode. This reliable TVS diode offers rapid response to voltage spikes, high peak power capacity of 1500W, and a maximum repetitive peak reverse voltage of 209V. It features UL-recognized UL 94V-0 plastic material, sturdy construction, and a compact case ideal for industrial and electronic applications. Ensure circuit safety with this robust diode capable of operating across temperatures from -55°C to +150°C, making it perfect for demanding environments.
Order your Multicomp Pro 15KE22A transient voltage suppressor today and ensure your electronic circuits are protected with high-quality surge suppression.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15KE22A?
You can click on the BUY or RFQ button to purchase 15KE22A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15KE22A?
You can download the 15KE22A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15KE22A?
MULTICOMP PRO
